Key Takeaways:
- Crawler rigs combined with Kelly bars enable precise, stable rotary drilling on rough terrain.
- Kelly bars transfer torque and crowd force to enable deep, controlled drilling across various borehole diameters.
- Strong mechanical integration ensures durability and efficient foundation work in the drilling industry.
- Choosing the right Kelly bar and size suitable for the rig and drilling method is essential for optimal performance.
Crawler rigs are tracked, self-propelled machines that provide a stable platform for equipment. Their adaptability makes them essential not only for foundation drilling but also for excavation and handling heavy loads in challenging ground conditions.
When combined with Kelly bars, correct integration becomes vital. This pairing improves rotary drilling rig accuracy, stability, and overall site productivity by merging precise mechanics, design, and mobility to streamline foundation work.
This article outlines the benefits of this integration, the need to choose the right Kelly bar type for the drilling rig, maintain equipment properly, and work with experienced manufacturers like Everstar Machinery to maximize performance and extend service life.
Overview of Kelly Bars and Crawler Rigs in Foundation Drilling
In foundation drilling, the combination of Kelly bars and a rotary drilling rig enables effective handling of challenging soil and rock layers, including rock drilling. Their integration delivers accurate torque transmission and stable performance across various drilling methods, even on rough or uneven sites.
What is a Kelly Bar and Its Role in Drilling?
Kelly bars transmit rotational torque and force from the drilling rig’s rotary drive to the drill bit. Their telescopic design allows for drilling deep boreholes while maintaining strength and control, crucial when creating foundation piles or drilled shafts at great depths, often filled with concrete to provide structural support.
Introduction to Crawler Rigs and Their Advantages
Crawler rigs use crawler tracks to provide a stable, self-propelled platform that moves steadily over rough, uneven ground. Equipped with hydraulic systems and a telescopic chassis, they provide the power and flexibility to handle heavy drilling equipment and adapt to site conditions, improving efficiency and safety.
Kelly Bar Crawler Rig: Mechanical Integration and Performance
Mechanical integration of Kelly bars with crawler rigs is key for efficient rotary drilling. It ensures secure connection, effective torque, and crowd force transfer, and design compatibility for stable, durable foundation operations.
Connecting the Kelly Bar to the Rotary Drive of the Crawler Rig
The upper end of the Kelly bar engages directly with the crawler rig’s rotary drive system, such as a rotary table or top drive, transferring the rotational torque necessary for drilling. This secure connection is vital for smooth and consistent operation.
Transmission of Torque and Crowd Force via Kelly Bar in Foundation Drilling
The Kelly bar acts as the key link transmitting both rotational motion and vertical crowd force from the crawler rig to the drilling tools. This dual transfer allows effective penetration of soil and rock while maintaining borehole stability throughout the drilling process.
Design Features Ensuring Compatibility and Stability
Design elements such as interlocking versus friction Kelly bars, integrated shock absorbers, and precision machining all contribute to a rigid, wear-resistant connection between the Kelly bar and crawler rig. These features optimize stability and prolong equipment life under demanding drilling conditions.
Operational Advantages of Using Kelly Bars on Crawler Rigs in Foundation Drilling
When paired correctly, Kelly bars and crawler rigs deliver operational benefits such as stability on difficult terrain, precise control of drilling parameters, and the durability required for demanding projects.
Enhanced Stability and Mobility on Challenging Sites
The tracked design of crawler rigs provides secure footing and smooth movement, even on uneven or soft ground. When combined with the strong torque transmission of a Kelly bar, operators can drill efficiently without compromising stability.
Precision and Control in Foundation Drilling Tasks
This integration allows operators to manage drilling depth and alignment with high accuracy, a key requirement for projects involving deep foundation elements. Whether working on bored piles or drilled shafts, precise control ensures structural integrity and reduces the risk of costly corrections.
Durability and Maintenance Considerations
Kelly bars built with wear-resistant materials and protective coatings are designed to endure the high loads and abrasive soils encountered in crawler rig operations. Regular inspections and timely maintenance help preserve performance, extend service life, and keep drilling schedules on track.
Selecting the Right Kelly Bar for Your Crawler Rig
Choosing the right Kelly bar involves more than simply picking a model. It’s about matching bar type, dimensions, and build quality to the specific crawler rig and drilling applications.
Matching Kelly Bar Types to Rig Specifications and Drilling Conditions
Interlocking, friction, and telescopic Kelly bars each perform differently depending on soil composition, required drilling depth, and the specific drilling method. Projects may involve bored piles, rock drilling, or the continuous flight auger technique, each requiring precise tool selection to ensure efficiency and durability.
Interlocking and Friction Kelly Bars in High Productivity
Interlocking is often used on crawler rigs or rotary drilling rigs for hard rock drilling in civil construction projects. They are specially designed to maintain torque and force at drilling depths, making them capable of handling demanding work that requires stability and high load capacity.
Friction bars may be chosen for sandy or loose soils, such as those found in urban piling jobs. Their lighter weight and simpler engagement mechanism enable faster speed and operation, enhancing production and offering versatility across different site conditions.
Importance of Key Dimensions and Connection Interfaces
For a Kelly bar to perform at its best, its length, outer diameter, and connection type must align perfectly with the crawler rig’s design. The precise fit and alignment of the inner and outer sections are essential to ensure smooth telescoping action and maintain structural integrity during drilling.
Drilling Diameter Considerations
Choosing the right drilling diameter ensures the Kelly bar matches the borehole size and rig specifications, such as max load capacity, width, and compatibility with the auxiliary winch. Proper alignment helps maintain stability, avoid delays, and keep drilling efficient.
Manufacturer and Brand Selection — Why Choose Everstar Machinery?

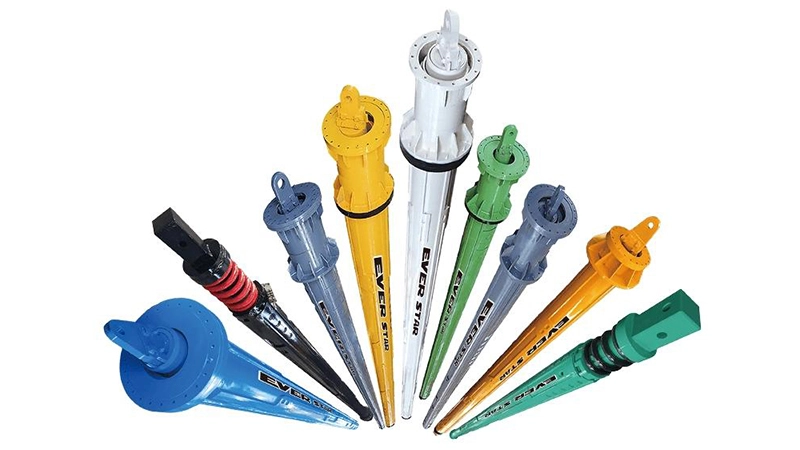

Everstar Machinery produces high-strength, wear-resistant Kelly bars for rigs, offering precision manufacturing, R&D-driven design, and dependable support for projects from dense clay drilling to offshore deep foundation elements.
Maintenance Best Practices for Kelly Bars on Crawler Rigs
Regular care extends the service life of Kelly bars and ensures reliable drilling performance on crawler rigs. As noted by OSHA, routine inspection and proper handling are key to preventing failures and maintaining safety in construction equipment.
Routine Inspection and Wear Monitoring
Inspect for cracks, worn keys, and compromised welds before and after each shift. Early detection prevents failures that can halt deep foundation work and increase repair costs.
Lubrication and Protective Coating Maintenance
Keep all lubrication points serviced and protective coatings intact. This minimizes friction, preserves wear resistance, and shields surfaces from abrasive soils and harsh weather conditions.
Guidelines for Handling and Storage
Some recommendations to avoid corrosion, deformation, and mechanical damage on construction sites include using rated lifting points or slings for transport, storing Kelly bars on level supports to prevent bending, and keeping them covered or sheltered from moisture and sunlight between projects.
FAQs
What is a crawler machine?
A crawler machine is a tracked platform built for heavy construction work where stability matters. The tracks spread the load, so it can operate on soft, uneven, or muddy ground without getting stuck.
What is the use of a crawler drill machine?
A crawler drill machine combines a crawler chassis with a drilling tool for stable, precise operation. It’s often used for creating boreholes, foundation piles, and other deep foundation elements in challenging environments.
What is the Kelly system in drilling?
The Kelly system transfers torque and downward force from the rig to the drilling tool. This setup keeps drilling steady, allowing deep penetration into soil or rock for strong, reliable foundations.
How does a Kelly bar connect to a crawler rig’s rotary drive?
The Kelly bar’s upper end locks into the rig’s rotary drive, such as a rotary table or top drive. This secure connection ensures efficient torque transfer and smooth drilling operations.
What are the benefits of using a Kelly bar on a crawler-mounted drilling rig?
This setup boosts drilling accuracy and stability, even on uneven terrain. It also combines the rig’s mobility with the Kelly bar’s torque capacity for efficient work in different soil conditions.
Which type of Kelly bar is best suited for crawler rigs used in foundation drilling?
The choice depends on site conditions and drilling depth. Interlocking types suit hard ground, friction types work well in softer soils, and telescopic bars handle varying depth requirements.
Does Everstar Machinery provide custom Kelly bars for different crawler rig models?
Yes, Everstar builds Kelly bars tailored to rigs. Their focus is on high-strength steel, wear resistance, and precise fit for reliable long-term use.
Conclusion – Optimizing Drilling with Kelly Bars and Crawler Rigs
Integrating Kelly bars with crawler rigs combines mechanical precision, robustness, and mobility to deliver efficient, stable foundation drilling. Selecting the right bar, maintaining it properly, and partnering with experts like Everstar Machinery ensures maximum drilling performance and longer tool lifespan.
