The foundation is the hidden but important part of any structure, bearing the weight of the entire building and transferring it to the underlying soil.
When you are building on weak soil or for heavy structures that exert a significant load on the ground, traditional shallow foundations won’t cut it. That’s where pile foundations come in.
By the end of this post, you will have a comprehensive understanding of the different types of pile foundations and their suitability for various construction projects.
What Is Pile Driving?
A construction method called pile driving is used to provide sturdy foundations for buildings, bridges, and other structures. Long poles, known as piles, are driven deeply into the ground by hammering.
By shifting the structure’s weight to more stable soil levels, these piles offer support and stability.
Pile drivers are big hammers that can be raised and dropped to drive the piles into the ground. Steel, concrete, or wood can create the piles themselves. Although pile driving is a safe and dependable technique for building strong foundations, it cannot be quiet and vibrate occasionally.
The Purpose: Pile driving is used when the surrounding soil is weak and unable to sustain the weight of the building by itself.
By shifting the structure’s weight to more stable soil layers, the piles maintain the structure’s stability and guard against collapse.
Applications: Pile driving is important for constructing various structures on unstable ground, including:
- Buildings
- Bridges
- Docks and piers
- Seawalls
The Importance of Learning About Pile Foundations
Learning about pile foundations ensures the stability and safety of structures built on challenging terrain. Here is why understanding pile foundations is important:
- Risk Management: Learning about pile foundations enables one to identify potential risks, implement effective risk management strategies, and develop contingency plans to address unexpected issues during construction.
- Regulatory Compliance: Learning more about pile foundations will help you stay informed about current codes and standards, follow best practices, and adhere to regulatory requirements to obtain permits and approvals for construction projects.
- Cost Efficiency: Investing in learning about pile foundations allows professionals to make informed decisions, optimize foundation designs, and mitigate potential risks, ultimately improving cost efficiency and project outcomes.
7 Types of Pile Foundations and Construction Methods
There are various pile foundation types, and each one is appropriate for a certain set of soil parameters and structural needs.
Seven main types of piled foundations are discussed as follows:
1. Friction Piles
Being cylindrical, a friction pile relies on the friction between the pile surface and the surrounding soil to support the weight of the structure. It distributes the stresses a building generates into the soil by utilizing its entire height.
The load that a friction pile can support is directly correlated with its length. This implies that the pile can support more weight as it goes down farther.
Unlike end-bearing piles, which transfer loads to a firm layer of soil or rock at the bottom, friction pile derives their load-bearing capacity primarily from the frictional resistance along the length of the pile.
2. End-Bearing Piles
End-bearing piles, sometimes called point-bearing piles or bearing piles, are based on a solid layer of rock or soil at their base, providing them with the majority of their load-carrying capacity.
End-bearing piles shift weights to a more robust layer of rock or soil at the bottom instead of friction piles, which depend on frictional resistance along their length.
3. Bored Piles

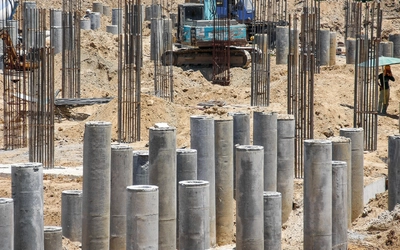

One kind of deep foundation component called bored piles is utilized to shift building loads to deeper, more capable rock or soil layers. Excavating a hole or shaft into the earth, filling it with concrete, and adding reinforcing are the steps involved in building these piles.
Because this placement produces less vibration than alternative methods, it is a common choice for construction projects in urban areas.
They are commonly used to construct bridges, high-rise buildings, industrial structures, and other large-scale projects where deep foundation support is required.
4. Driven Piles
An example of a deep foundation element is a driven pile, which is put in place by pounding it into the ground with an impact hammer or vibratory machinery.
Buildings, bridges, and other structures can have their structural loads moved to more stable, deeper soil or rock layers below the surface of the earth using these piles.
Driven piles offer several advantages, including high load-bearing capacity and suitability for a wide range of soil conditions.
5. Concrete Piles
Concrete piles are frequently used in offshore building projects like oil rigs, floating airports, and bridges. It is a contemporary instrument that efficiently sustains both lateral wave loads and vertical structural loads.
Because of the way the pile reacts and disperses loads, it is frequently utilized to stabilize rough terrain.
6. Timber Piles
Engineers have utilized timber piles in construction for thousands of years. Timber piles are placed using the drive method after being prefabricated off-site.
They are an incredibly affordable, secure, and effective foundation option for transient and permanent constructions. A timber pile is intended to support a maximum weight of 15 to 25 tons per pile.
7. Steel Piles
Construction workers must install steel piles that can pierce both rock and solid soil using vibration hammers. Steel tube piles are also available in a variety of diameter and dimension variants to suit the specific support requirements of your project.
To have a better idea about the pile foundations and a comprehensive selection process, you need to understand the advantages and disadvantages of each type.
Some major advantages and disadvantages of the pile foundation types are discussed below:
How to Choose Pile Foundation Correctly?
Choosing the proper pile foundation for a construction project involves careful consideration of various factors, including soil conditions, structural requirements, environmental considerations, and budget constraints.
Here is a step-by-step guide to help you choose the correct pile foundation:
- Site Investigation: Understanding the soil properties, such as bearing capacity, cohesion, and permeability, is important for selecting the appropriate pile type.
- Structural Requirements: Determine the structural requirements of the project, including the type of structure, loads to be supported, design life, and any specific performance criteria.
- Pile Types: Evaluate the various types of pile foundations available, such as driven piles, bored piles, friction piles, end-bearing piles, concrete piles, steel piles, or composite piles.
- Environmental Factors: Assess environmental factors that may affect the performance of the pile foundation, such as groundwater levels, soil erosion, seismic activity, and potential impacts on nearby structures or ecosystems.
- Cost Considerations: Evaluate the cost implications of different pile foundation options, including construction costs, material costs, equipment expenses, maintenance requirements, and any potential risks or contingencies.
- Consultation with Experts: Seek advice from experts, structural engineers, and other relevant experts to assist in the selection process.
FAQs
- Which Kind of Pile Is Most Commonly Used?
Driven heaps are the most prevalent kind of piling. The least expensive deep foundation technique for supporting structures like tanks, towers, walls, bridges, and buildings is usually to use these piles.
2. Which Kind of Pile Is Most Commonly Used?
The strongest kind of foundation is poured concrete. Concrete can be poured into any shape and is very strong and long-lasting. While block foundations are not as flexible as poured concrete, they are nevertheless quite strong.
3. Where Is Pile Foundation Used?
Underneath constructions, called pile foundations, are used to hold up buildings. Long pillars called piles reach down into the ground to support the structure above them. They are usually employed when the soil above is too thin to support the weight of the structure.
Conclusion
Choosing the right pile foundation for your project requires careful consideration of some factors. Each type of pile offers unique advantages and caters to specific needs.
This article provided a foundational understanding of the most common pile types and their construction methods. By consulting with an expert, you can determine the optimal pile foundation to ensure a strong and stable base for your next construction project.
