This article talks about everything you need to know about backhoe loader buckets, specifically tailored to maximize the potential of your machine.

We will explore different bucket types, their ideal uses on backhoes, and how to select the optimal size for your specific needs.

Overview of Backhoe Loaders

Backhoe loaders, often called wheel loaders, are multi-tasking construction machines. It is like having two tools in one.

A loader front bucket scoops and loads loose materials like dirt or gravel up front. In the back, a backhoe attachment with a digging arm and bucket tackles excavation jobs.

This arm can swing a full 180 degrees, making it perfect for digging trenches, foundations, or holes. Their compact size allows them to work in tight spaces and makes them easier to operate than larger excavators.

Backhoe loaders ideal for a wide range of tasks, especially in:

• Construction: Backhoe loaders are used for digging trenches, footings, and foundations, as well as loading and moving materials around the site.
• Landscaping: They are also used for creating ponds, pools, and berms, as well as removing trees and brush.
• Demolition: Backhoes are capable of minor demolition work, breaking Asphalt, and clearing debris.
• Utilities: They can successfully install underground utilities like pipes and cables.

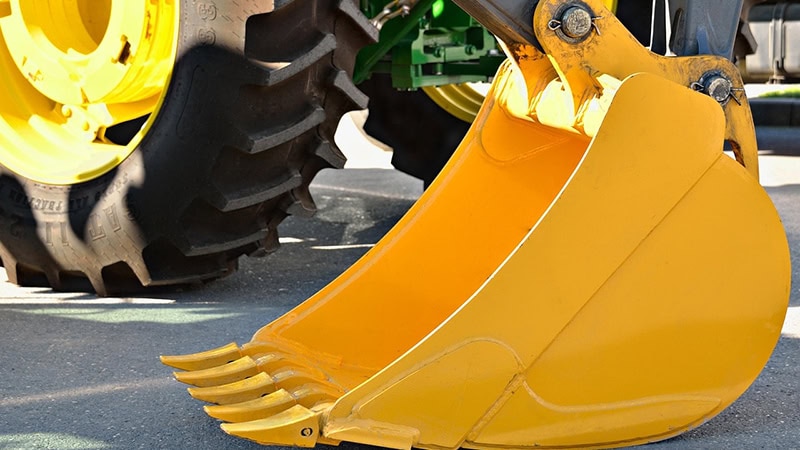

What is a Backhoe Loader Bucket?

A backhoe loader bucket is an essential attachment on the front of a backhoe loader that is used for scooping, lifting, and transporting materials during construction and excavation tasks.

Here is a list of its features and functions that you might need to know:

Design and Structure: Backhoe loader buckets come in various shapes and sizes depending on the specific job requirements.

They are typically made of high-strength steel and feature a curved or flat base with sides that help contain materials during scooping.

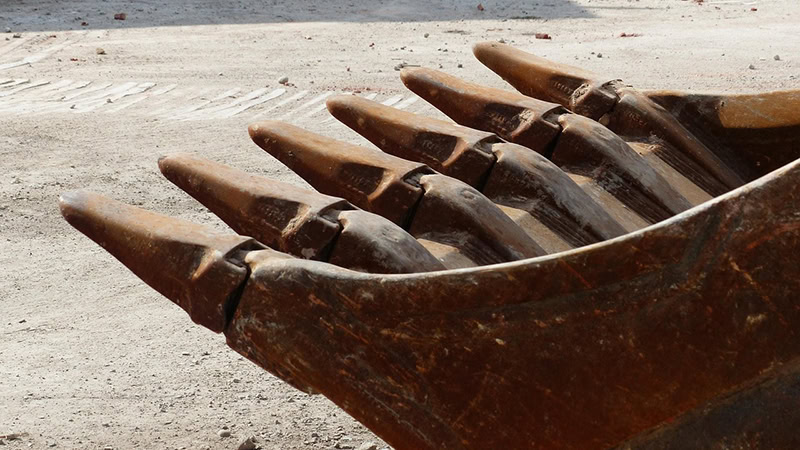

One of the excavator attachments, the leading edge of the bucket, known as the cutting edge, is reinforced to withstand abrasion and cutting through tough materials.

Bucket Capacity and Size: The capacity of a backhoe loader bucket refers to the volume of material it can hold. It is usually measured in cubic yards or cubic meters.

The size of a backhoe loader bucket refers to its width, which determines the width of the swath it can clear with each pass.

Bucket sizes typically range from around 12 inches to 36 inches or more, with larger buckets covering more ground but offering less precision.

Roles in Construction and Excavation: Backhoe loader buckets play several important roles in construction and excavation, some of them are given below:

• Excavating trenches and holes for foundations, utilities, and drainage.
• Loading and transporting materials such as soil, gravel, sand, and debris.
• Backfilling and leveling excavated areas.
• Clearing and cleaning the job site.

5 Types of Backhoe Loader Buckets

Here are descriptions of 5 types of backhoe loader buckets, along with their unique features and best use cases.

Backhoe Loader Bucket Size and Capacity

The size and capacity of a backhoe loader bucket are crucial factors to consider when choosing the right attachment for your project.

Some of the important factors regarding bucket size and capacity are discussed as follows:

Bucket Size

• Width: Measured in inches (in.) or feet (ft.), bucket width determines how much material can be scooped in a single pass.
• Height: Also measured in inches (in.) or feet (ft.), bucket height affects the digging depth and the amount of material that can be contained within the bucket.
• Depth: Measured in inches (in.) or feet (ft.), bucket depth is relevant for specific digging applications where a certain depth needs to be reached.
•

Bucket Capacity

• Unit of Measure: Bucket capacity is typically measured in cubic yards (cu. yd.).
• Calculation: The most common formula for calculating bucket capacity is:

Bucket Capacity (cu. yd.) = Width (ft.) x Height (ft.) x Depth (ft.)/27

Sample Backhoe Loader Bucket Sizes and Capacities

How to Choose the Right Bucket Size?

Choosing the appropriate bucket size for your backhoe loader is an important decision that significantly impacts efficiency, safety, and project outcomes.

A well-matched bucket optimizes machine performance and engine power and ensures the project is completed effectively.

Critical Factors for Bucket Size Selection

By carefully evaluating some factors, you can select a bucket size that optimizes your backhoe loader’s performance and ensures a successful project outcome.

Some of them are given below:

Material Properties

• Light Materials (Sandy Soil, Gravel): Larger buckets can be employed for faster loading due to their increased lift capacity.
• Dense Materials (Rock, Compacted Soil): Mini backhoes with more robust buckets are recommended for better penetration and to prevent exceeding the machine’s lifting capacity.

Digging Requirements

• Shallow Depths: A wider bucket with a shallower profile may be sufficient for scooping and light excavation.
• Deep Trenches or Precise Digging: A narrower bucket with a deeper profile allows for reaching the required depth and facilitates more controlled excavation.

Machine Capabilities

• Hydraulic Power: A larger bucket might require more hydraulic force to operate effectively. Ensure your backhoe’s hydraulic system has sufficient power to handle the chosen bucket size.

Terrain

• Confined Spaces: A narrower bucket provides superior maneuverability in tight working areas.

Maintenance and Care for Backhoe Buckets

Maintaining and caring for backhoe buckets is important for ensuring their longevity, optimal performance, and safety as one of the most versatile machines.

Here are some key maintenance and care practices:

1. Regular Inspections: Conduct visual inspections of the bucket before and after each use. Look for signs of wear, damage, cracks, or excessive rust.
2. Cleaning: After use, clean the bucket thoroughly to remove dirt, debris, and corrosive materials. Use a pressure washer or hose to wash away the buildup and prevent corrosion.
3. Repairs: Replace worn or damaged components such as cutting edges, teeth, and wear plates to maintain optimal performance and safety.
4. Storage: Store backhoe buckets in a dry, covered area when not in use to protect them from the elements and minimize rust and corrosion.
5. Avoid Overloading: Do not exceed the rated capacity of the bucket to prevent structural damage and ensure safe operation. Take good care of the irrigation systems.

FAQs

1. What Is a Backhoe Loader’s Bucket Capacity?

The capacity of the wheel loader bucket is 2.4 cum. On the other hand, 1.0 cum is the capacity of the loader bucket.

While the maximum operating weight can range around 7500 kg, the maximum dig depth is 4741 mm.

2. Are Buckets for Backhoes All the Same?

Not at all. There are different types of buckets for different backhoe loaders. However, buckets that fit on one machine may also fit on another since machine fittings can occasionally overlap.

3. What Distinguishes a Backhoe From a Bucket Loader?

A wheel loader only has a bucket on the front, whereas a backhoe has attachments on both ends. This is the main distinction between the two machines.

Conclusion

By now, you are well aware of the knowledge to confidently choose the ideal backhoe loader bucket for any project you tackle.

The right bucket size and type can significantly enhance efficiency and performance and protect your valuable machine from strain.

It is very important to choose the right backhoe loader bucket because, with the right size and type, you will also experience faster loading times, cleaner trenches, and optimal digging results, all while minimizing wear and tear on your machine.

Select the Perfect Backhoe Loader Bucket for Maximum Performance with Ever Star Group!

Ready to optimize your backhoe loader’s performance and conquer any project? At Ever Star Group, we offer a wide selection of high-quality backhoe loader buckets designed for specific applications and models.

Contact us today to discuss your needs and get a consultation on choosing the perfect backhoe loader bucket. Let’s ensure you have the right tool for the job and maximize your machine’s potential.

Oil drilling rigs are the backbone of our modern society. These modern tools, which allow us to locate and extract crude oil from the ground, are also responsible for the flourishment and prosperity of many nations.

However, understanding the complex world of oil drilling is no easy task. The various terminologies and types of drilling rigs can confuse most industry veterans.

In this article, we explain the science behind oil drilling rigs and discuss their operating procedure and the challenges behind oil drilling.

State of the Oil Industry in 2024

The first quarter of 2024 has seen a decline in crude oil demand. With the rise in the adoption of electric vehicles and a general shift towards renewables, the IEA estimates gasoline (petroleum) demand to decrease by 25% in 2024 and 31.25% in 2025.

While the demand has decreased, the price of a barrel of crude oil has increased in Q1 of 2024.

The oil and gas industry has invested in new technologies over the last 15 years, which have significantly improved annual oil production.

However, the reduced demand for oil and natural gas may impact the economies of countries reliant on exporting crude oil.

Some US oil companies are also looking to diversify their energy production portfolio. Fervo Energy has started utilizing its oil drilling equipment to tap into geothermal energy.

Despite the decline in demand, the oil business is still as profitable as ever. Many industries still rely on oil’s convenience and power, and the industry will continue to prosper for the foreseeable future.

What are Oil Drilling Rigs?

Oil drilling rigs are giant industrial structures used to explore and extract crude oil from the earth’s crust. They can also dig water wells and extract natural gas.

Oil drilling sites include onshore oil fields, offshore deposits underwater, and remote uninhabited areas such as deserts or the Arctic regions.

Most oil drilling rigs stand tall at 125 ft., equivalent to a 12-story building, and cover several thousand square feet of land.

Key Components of a Drilling Rigs

• Derrick – Large vertical support structure that holds the drill bit and adds new pipes to the drill wells.

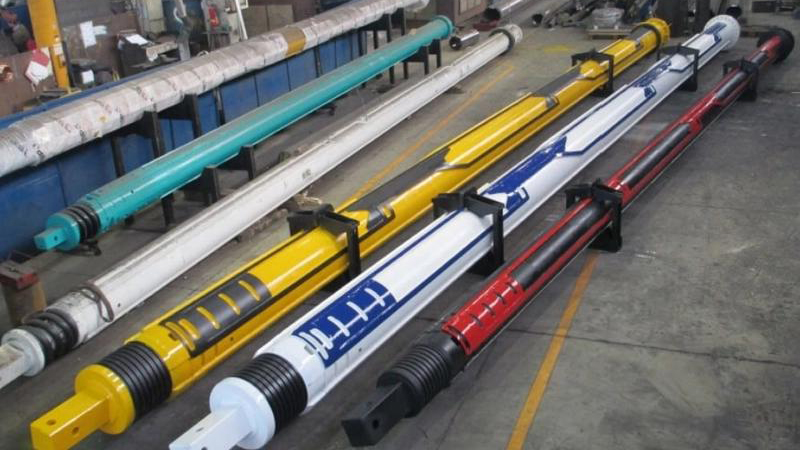

• Drill String—The part of the drilling apparatus that penetrates the ground consists of a drill pipe, drill collars, and a drill bit.

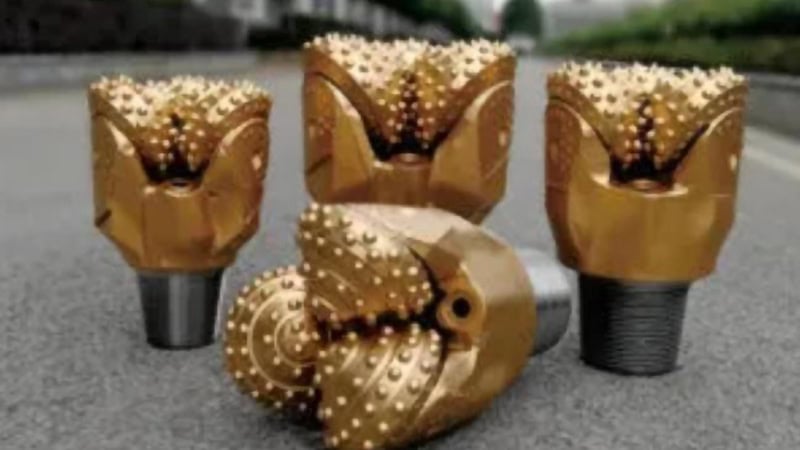

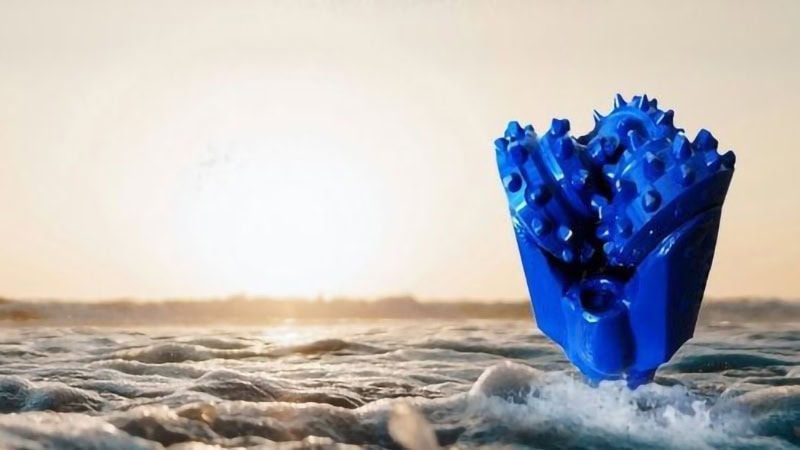

• Drill Bit – The cutting tool is tied to the end of the drill string. It’s made of strong materials (tungsten, diamond, carbide steel, etc.) and comes in several shapes and sizes.
• Mechanical Drivers – Motors that provide the rotary motion to the drill bit, move the drill string up and down and lower the pipes into the drill hole.
• Electricity Generators—Large diesel generators power the drilling rig. They drive the mechanical motors and oil pumping mechanisms and power the monitoring equipment.

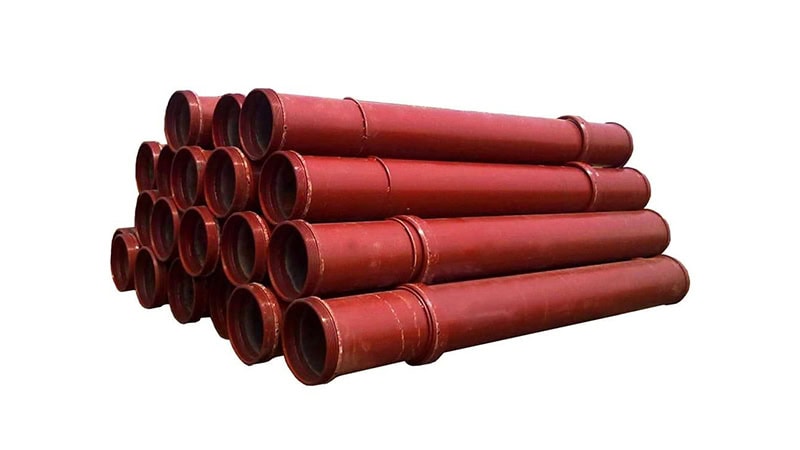

• Casing – Metal pipes of varying diameter and length that provide structural integrity to the drill hole.
• Blowout Preventers – Pressure relief valves on top of the drill pipe that prevent the build of excess pressure.
• Mud Circulation System—A system of pumps and pipes that delivers a lubricating mud mixture to the drilling apparatus.

Challenges of the Oil Drilling Process

• Environmental Impact—Oil drilling is a disruptive process. It negatively affects neighboring land, damaging plant life and destroying animal habitats. Oil spills pollute and contaminate the soil and nearby water bodies as well.
• Remote Locations – Most oil rigs, especially offshore drilling rigs, operate in remote locations thousands of miles from shore. Getting supplies to these remote locations can be a financial and logistical nightmare. The job’s nature also necessitates workers staying on the drilling vessel for months.
• Regulatory Compliances—Oil drilling requires high regulation and safety oversight. Businesses must address matters related to the environment, public health, worker safety, etc. The oil and gas industry, in general, must abide by several national and international regulations.
• Worker Safety – Safety on a drill site with several tons of heavy equipment, toxic chemicals, and other hazards should always be a priority. Maintaining worker safety and implementing emergency response plans on a drill site with hundreds of employees is challenging.
• Equipment Maintenance – Drilling rig equipment is reliable and long-lasting under standard operating conditions. However, drilling operations in remote areas like the Arctic will inevitably damage and chip away at the equipment. Rigorous inspections and maintenance protocols are required to keep the production equipment up and running.

How does the Oil Drilling Process Work?

Source: HowStuffWorks

The oil and gas industry follows the same basic steps for identifying and extracting underground energy sources.

Step 1 – Site Survey

Before any real drilling starts, a comprehensive site assessment and land survey is required. Geological surveys using various high-tech equipment help identify potential oil fields.

Engineers and scientists conduct seismic, magnetic, and gravity surveys for months before any drilling or oil production can start.

Step 2 – Rig Setup

Once the site is finalized, drilling equipment is assembled on site.

Equipment includes the machinery for drilling operations, the power supply systems, anchors and other support structures, on-site monitoring rooms/cabins, and various other application-specific setups.

Step 3 – Drilling Process

Oil drilling involves rotating and pushing a drill bit into the earth using a giant mast called a derrick. As the drill penetrates the ground, drilling mud (or drilling fluid) lubricates the drill and increases penetration efficiency.

Drilling mud is a mixture of water, clay, and other additives that help the drill break down hard underground rocks while keeping the drill bit from overheating from friction.

Step 4 – Casing Installation

Casing refers to a series of metal pipes inserted into the drill hole.

The outer pipes provide structural integrity to the hole, preventing it from collapsing, while a series of inner pipes maintain a water-tight seal for oil extraction. New casings are installed after every few hundred feet of hole depth.

Step 5 – Monitoring and Evaluation

The drill site is under constant monitoring and geological surveys that identify underground rock formation, porosity, and moisture levels.

Based on the survey results, engineers evaluate the need for power and drill bit changes.

Step 6 – Extraction Process

After reaching the desired depth (between 6,000 – 40,000 ft.), the drilling rig is moved to the side in favor of extraction equipment.

Special pipes, pumps, valves, wellheads, and other tools extract crude oil from the hole depth to the surface level.

Step 7 – Oil Production

Once the oil well is complete, the production process kicks into high gear. Several thousand barrels of oil and gas can be extracted from the ground daily.

Large oil trucks and sea vessels (for offshore drilling) quickly transport oil from the drill site to a storage area.

Offshore vs. Onshore Oil Drilling

Onshore drilling refers to dry land-based oil extraction processes. On the contrary, offshore drilling extracts resources from the seafloor at various depths.

Onshore Land Rigs

Land drilling rigs are the most basic type of oil production equipment. These massive structures are assembled on-site according to the job needs.

Upon task completion, the rig gets dismantled and transported on heavy-duty trucks to a warehouse or the next drill site.

Offshore Oil Rigs

Offshore oil rigs are designed for underwater drilling and operate anywhere from shallow waters to the middle of the ocean.

Some rigs are intended for fixed installation on the ocean floor, while others have a mobile design that allows them to move from one drilling location to another.

There are several types of offshore oil drilling rigs designed to tackle the various challenges of the sea.

Every Type of Offshore Oil Drilling Rig

Offshore oil drilling rigs come in all sizes and shapes. Rig designs range from small fixed platforms to massive floating production systems.

1. Jack-Up Rigs

Jack-up oil drilling rigs are mobile structures designed for shallow water operations. The floating drilling rig is towed to the desired location, and support legs reach down to the sea bed, anchoring the right and pushing it upward.

Once the job is done, the support legs will retract, freeing the drilling vessel.

2. Barge Rigs

Barge-type drilling rigs are the most minor type of offshore oil rigs. These mobile oil production vessels are designed for very shallow waters, with a depth of around 10-20 ft. Barge rigs have a large hull that floods with water after reaching the desired drilling location, keeping the vessel from drifting.

3. Submersible Rigs

Submersible offshore drilling rigs are the big brother to barge rigs. These floating production vessels have a large pontoon design at the bottom. Pontoons are large cylinders that get flooded with water until they rest on the seafloor.

When drilling operations are done, pontoons expel the stored water, and the submersible rig begins to float. Submersible offshore rigs are ideal for medium water depth, 18-70ft.

4. Semi-Submersibles Rigs

Semi-submersible oil rigs use the same pontoon design with retention cables attached. When filled with water the pontoons dive several feet into the water but don’t touch the seafloor. Instead, a series of mooring lines and anchors are used to keep the rig stationary and tied to the sea floor.

Semi-submersibles increase the operating water depth up to 2,000 ft. (~600m).

5. Platform Rigs

Platform oil drilling rigs, also called fixed platforms rigs, are structures built on water platforms that keep the oil drilling equipment several feet above the water surface. These platforms stand on large metal or concrete legs that touch the seafloor.

A base platform is built on the seafloor, and drilling equipment is brought on board using large ships. Concrete platforms are exceptionally economical for water depths over 500 ft. (~150m).

6. Compliant Towers

Compliant tower offshore drilling rigs use a narrower flexible structure as a platform. These rigs are mobile and can easily be relocated without the need for complete dismantlement of the equipment.

The narrower design of compliant towers allows them to withstand larger lateral forces, making them ideal for deeper waters, 1,000 – 2,000 ft. (~300-600m).

7. Tension-Leg Platform

Tension leg platforms are mobile oil production systems anchored to the sea floor using long and heavy cables. The platform stays stationary due to the cables’ tensile stress, which is also called vertical tendons.

Tension-leg oil drilling platforms can operate in deep waters around 7,000 ft. (~2,100m).

8. Spar Platform

A spar platform has a massive cylindrical base several hundred feet long. The cylinder stays submerged in the water and has grooves along the outer surface that provide stability against ocean currents. The cylinder doesn’t reach the ocean floor. Instead, a series of cables tie the cylinder of the floating vessel to the ocean floor.

The spar platform is an upgrade to the tension leg platform. Adding a cylinder to the drilling rig’s base increases its operational water depth to 10,000 ft. (~3000m).

9. Drill Ships (Floaters)

A drillship is an offshore drilling rig built on a large sea vessel base. It is an excellent choice for mobile offshore drilling operations. The ship is easy to maneuver and can operate in shallow and deep waters.

Its size and onboard equipment determine the exact capabilities of a drillship.

Conclusion

Oil drilling rigs are an incredible marvel of engineering. They are massive structures that operate on land and sea to extract crude oil from deep within the earth’s core.

The extraction process is incredibly challenging, especially in remote locations. Luckily, years of research have improved drilling technology, resulting in specialized tools enabling drilling in the toughest environments.

Businesses looking to buy an oil drilling rig should consider their operating location and choose an appropriate system.

Power Up Your Business with Everstar!

Everstar is a leading manufacturer and supplier of heavy machinery. With over ten years of experience in the industry, we have established ourselves as a trustworthy partner to our global clientele. All our products comply with various international safety and quality regulations, including ISO 9001:2008.

Our drilling rigs are built with state-of-the-art technology, enabling years of consistent and reliable operations. Everstar offers a comprehensive after-sale services program, including free installation and operator training.

Take your business to new heights with Everstar. Contact Us Now!

The foundation is the hidden but important part of any structure, bearing the weight of the entire building and transferring it to the underlying soil.

When you are building on weak soil or for heavy structures that exert a significant load on the ground, traditional shallow foundations won’t cut it. That’s where pile foundations come in.

By the end of this post, you will have a comprehensive understanding of the different types of pile foundations and their suitability for various construction projects.

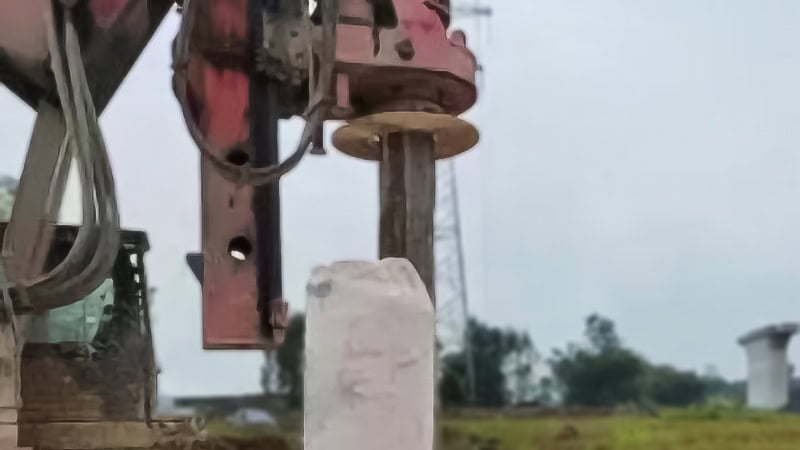

What Is Pile Driving?

A construction method called pile driving is used to provide sturdy foundations for buildings, bridges, and other structures. Long poles, known as piles, are driven deeply into the ground by hammering.

By shifting the structure’s weight to more stable soil levels, these piles offer support and stability.

Pile drivers are big hammers that can be raised and dropped to drive the piles into the ground. Steel, concrete, or wood can create the piles themselves. Although pile driving is a safe and dependable technique for building strong foundations, it cannot be quiet and vibrate occasionally.

The Purpose: Pile driving is used when the surrounding soil is weak and unable to sustain the weight of the building by itself.

By shifting the structure’s weight to more stable soil layers, the piles maintain the structure’s stability and guard against collapse.

Applications: Pile driving is important for constructing various structures on unstable ground, including:

• Buildings
• Bridges
• Docks and piers
• Seawalls

The Importance of Learning About Pile Foundations

Learning about pile foundations ensures the stability and safety of structures built on challenging terrain. Here is why understanding pile foundations is important:

• Risk Management: Learning about pile foundations enables one to identify potential risks, implement effective risk management strategies, and develop contingency plans to address unexpected issues during construction.
• Regulatory Compliance: Learning more about pile foundations will help you stay informed about current codes and standards, follow best practices, and adhere to regulatory requirements to obtain permits and approvals for construction projects.
• Cost Efficiency: Investing in learning about pile foundations allows professionals to make informed decisions, optimize foundation designs, and mitigate potential risks, ultimately improving cost efficiency and project outcomes.

7 Types of Pile Foundations and Construction Methods

There are various pile foundation types, and each one is appropriate for a certain set of soil parameters and structural needs.

Seven main types of piled foundations are discussed as follows:

1. Friction Piles

Being cylindrical, a friction pile relies on the friction between the pile surface and the surrounding soil to support the weight of the structure. It distributes the stresses a building generates into the soil by utilizing its entire height.

The load that a friction pile can support is directly correlated with its length. This implies that the pile can support more weight as it goes down farther.

Unlike end-bearing piles, which transfer loads to a firm layer of soil or rock at the bottom, friction pile derives their load-bearing capacity primarily from the frictional resistance along the length of the pile.

2. End-Bearing Piles

End-bearing piles, sometimes called point-bearing piles or bearing piles, are based on a solid layer of rock or soil at their base, providing them with the majority of their load-carrying capacity.

End-bearing piles shift weights to a more robust layer of rock or soil at the bottom instead of friction piles, which depend on frictional resistance along their length.

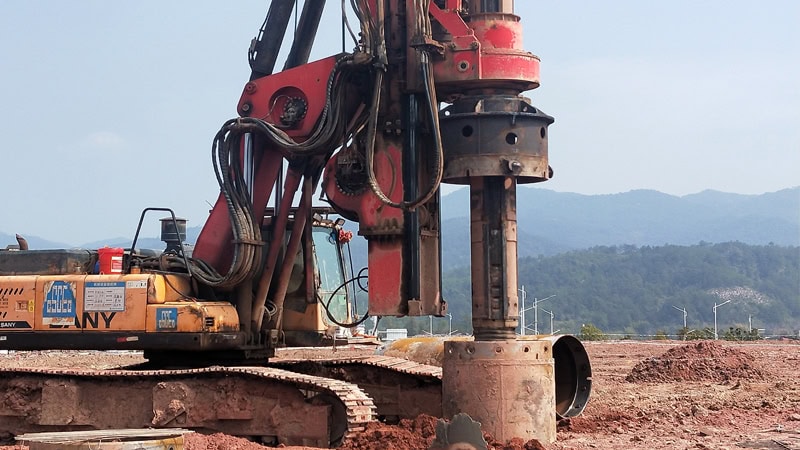

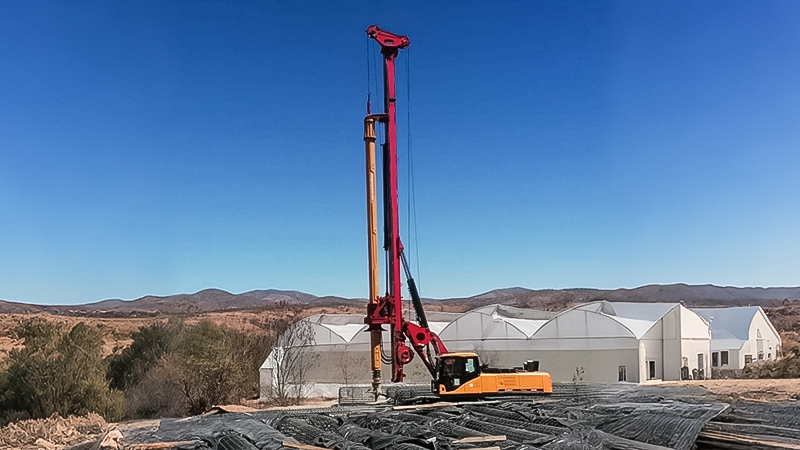

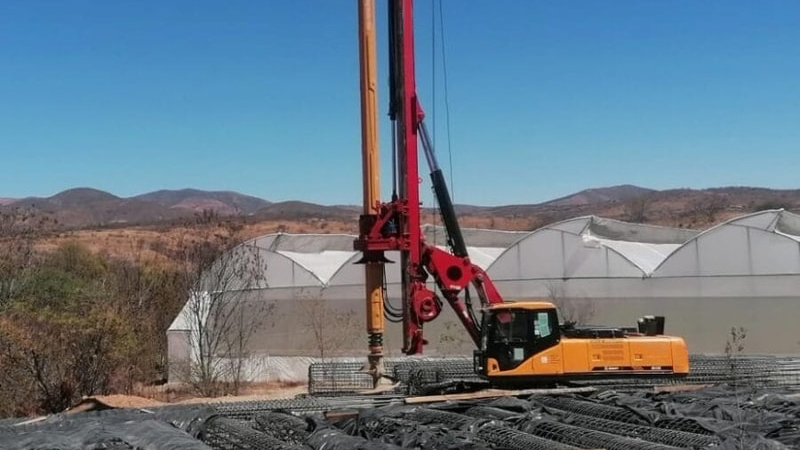

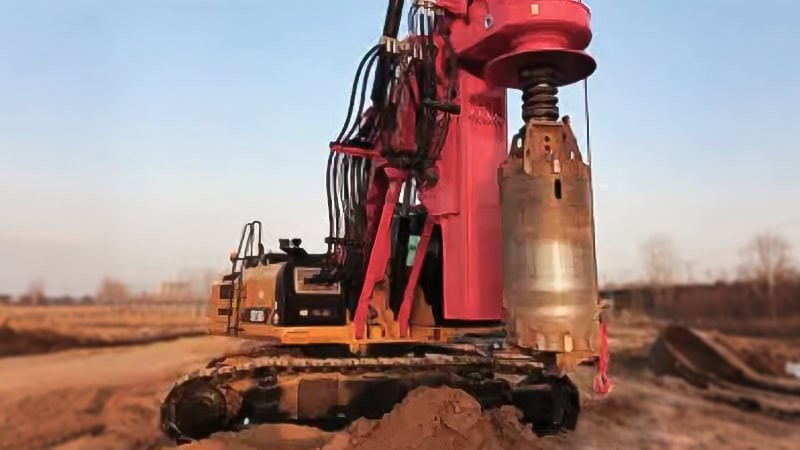

3. Bored Piles

One kind of deep foundation component called bored piles is utilized to shift building loads to deeper, more capable rock or soil layers. Excavating a hole or shaft into the earth, filling it with concrete, and adding reinforcing are the steps involved in building these piles.

Because this placement produces less vibration than alternative methods, it is a common choice for construction projects in urban areas.

They are commonly used to construct bridges, high-rise buildings, industrial structures, and other large-scale projects where deep foundation support is required.

4. Driven Piles

An example of a deep foundation element is a driven pile, which is put in place by pounding it into the ground with an impact hammer or vibratory machinery.

Buildings, bridges, and other structures can have their structural loads moved to more stable, deeper soil or rock layers below the surface of the earth using these piles.

Driven piles offer several advantages, including high load-bearing capacity and suitability for a wide range of soil conditions.

5. Concrete Piles

Concrete piles are frequently used in offshore building projects like oil rigs, floating airports, and bridges. It is a contemporary instrument that efficiently sustains both lateral wave loads and vertical structural loads.

Because of the way the pile reacts and disperses loads, it is frequently utilized to stabilize rough terrain.

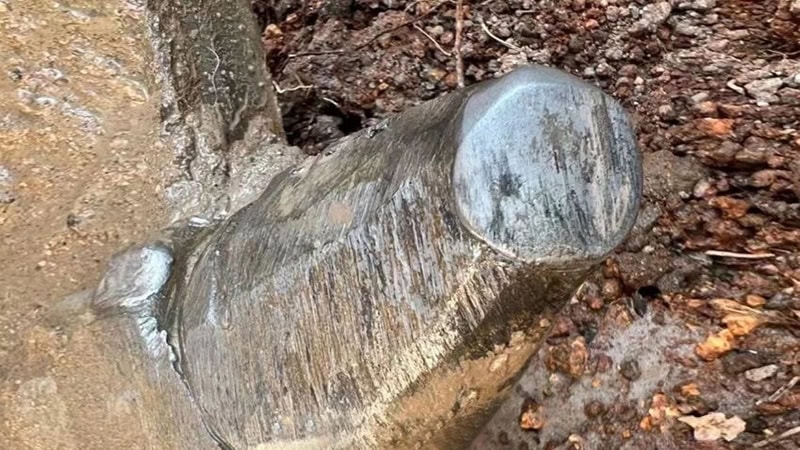

6. Timber Piles

Engineers have utilized timber piles in construction for thousands of years. Timber piles are placed using the drive method after being prefabricated off-site.

They are an incredibly affordable, secure, and effective foundation option for transient and permanent constructions. A timber pile is intended to support a maximum weight of 15 to 25 tons per pile.

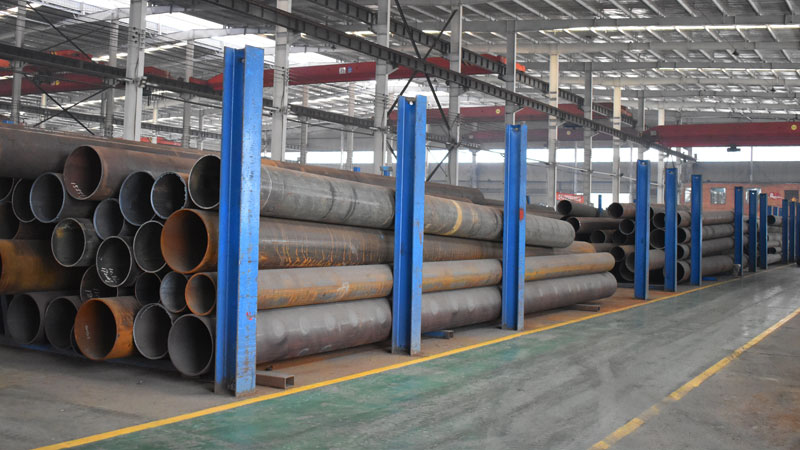

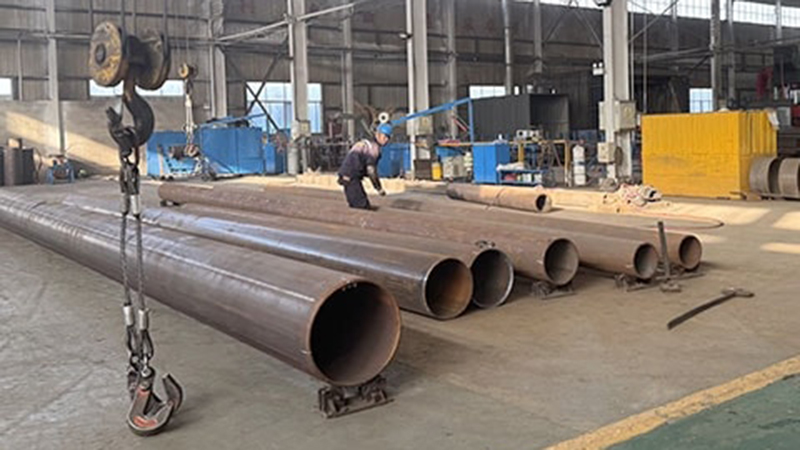

7. Steel Piles

Construction workers must install steel piles that can pierce both rock and solid soil using vibration hammers. Steel tube piles are also available in a variety of diameter and dimension variants to suit the specific support requirements of your project.

To have a better idea about the pile foundations and a comprehensive selection process, you need to understand the advantages and disadvantages of each type.

 Some major advantages and disadvantages of the pile foundation types are discussed below:

How to Choose Pile Foundation Correctly?

Choosing the proper pile foundation for a construction project involves careful consideration of various factors, including soil conditions, structural requirements, environmental considerations, and budget constraints.

Here is a step-by-step guide to help you choose the correct pile foundation:

• Site Investigation: Understanding the soil properties, such as bearing capacity, cohesion, and permeability, is important for selecting the appropriate pile type.
• Structural Requirements: Determine the structural requirements of the project, including the type of structure, loads to be supported, design life, and any specific performance criteria.
• Pile Types: Evaluate the various types of pile foundations available, such as driven piles, bored piles, friction piles, end-bearing piles, concrete piles, steel piles, or composite piles.
• Environmental Factors: Assess environmental factors that may affect the performance of the pile foundation, such as groundwater levels, soil erosion, seismic activity, and potential impacts on nearby structures or ecosystems.
• Cost Considerations: Evaluate the cost implications of different pile foundation options, including construction costs, material costs, equipment expenses, maintenance requirements, and any potential risks or contingencies.
• Consultation with Experts: Seek advice from experts, structural engineers, and other relevant experts to assist in the selection process.

FAQs

1. Which Kind of Pile Is Most Commonly Used?

Driven heaps are the most prevalent kind of piling. The least expensive deep foundation technique for supporting structures like tanks, towers, walls, bridges, and buildings is usually to use these piles.

2. Which Kind of Pile Is Most Commonly Used?

The strongest kind of foundation is poured concrete. Concrete can be poured into any shape and is very strong and long-lasting. While block foundations are not as flexible as poured concrete, they are nevertheless quite strong.

3. Where Is Pile Foundation Used?

Underneath constructions, called pile foundations, are used to hold up buildings. Long pillars called piles reach down into the ground to support the structure above them. They are usually employed when the soil above is too thin to support the weight of the structure.

Conclusion

Choosing the right pile foundation for your project requires careful consideration of some factors. Each type of pile offers unique advantages and caters to specific needs.

This article provided a foundational understanding of the most common pile types and their construction methods. By consulting with an expert, you can determine the optimal pile foundation to ensure a strong and stable base for your next construction project.

Select the Perfect Pile Foundation for Your Project with Ever Star Group!

If you’re still confused about which pile foundation best suits your needs, don’t hesitate to Contact us. Our team of experienced technicians can assess your specific project requirements and recommend the optimal pile foundation solution. We will ensure your structure rests on a solid and stable base for years to come.

As the world increasingly embraces renewable energy, equipment that enables the installation and use of such energy is also improving.

In the past few years, solar pile drivers have become indispensable in the solar industry. These machines have turned into essential tools for building solar projects, boosting efficiency, and cutting down construction costs.

Understanding the role and value of these incredible machines will help accelerate our progress toward a completely renewable future.

In this article, we delve into the basics of solar pile drivers and highlight their importance in the renewable energy sector.

What is a Solar Pile Driver?

Solar pile drivers are specialized equipment used in the construction of solar farms. Compared to traditional pile drivers, they have a smaller footprint and a more compact design, allowing for greater mobility on the job site.

Ground-mount solar systems require rigid support beams that provide stability under various weather conditions. Larger metal piles, around 15ft. long, are driven 70% into the earth, and only 4ft. of the beam stays above the surface.

Most solar farm projects deploy a few dozen panels sitting atop hundreds of piles. An efficient solar pile driver can save you significant time during the installation process.

Renewable energy adoption is still at an undesirable level worldwide. However, the mass availability of specialized equipment, such as solar pile drivers, has lowered the barrier to entry for smaller nations.

Types of Solar Pile Drivers

Solar pile drivers can be categorized into three groups based on their type of actuators.

1. Impact Pile Drivers

Impact pile or diesel hammer drivers are the most common type of equipment used in solar panel installation. A two-stroke engine powers these machines, which offer decent power at a lower cost.

2. Hydraulic Pile Drivers

Hydraulic pile drivers use motors and pumps to force an incompressible fluid through tubes to generate pressure. These machines have a high energy consumption but also a higher power output.

Hydraulic power delivery is one of the most useful technologies in modern manufacturing.

3. Vibratory Pile Drivers

The traditional method of driving piles consists of a hammer-and-nail approach. A large piston powered by a diesel engine or hydraulics strikes the pile repeatedly until it is pushed into the ground.

Vibratory pile drivers instead induce vibrations into the pile, causing it to nestle itself into the ground gently. Vibratory pile drivers are rarely used on solar energy projects due to their high cost.

Importance of Solar Pile Drivers in Solar Farm Construction

In solar farm construction, the role of pile drivers is indispensable. These machines offer numerous advantages over traditional pile installation methods.

Here are some of the biggest pile drivers contributions to your solar project.

1. Speed & Efficiency

Solar pile drivers are quick and effective. A high-quality solar pile driver can easily install a hundred piles in a single day. Speed is one of the most highly sought-after features in any piece of equipment in any large construction project.

2. Precision & Stability

The key to perfectly installing a pile is constant and even pressure. Small mistakes can lead to a crooked pile, which needs to be removed and reinstalled. A modern pile driver is highly precise and can accurately drive solar piles all day with zero mistakes.

3. Reduced Labor Reliance

The traditional method of installing piles requires two or more laborers using large sledgehammers to drive the metal beams into the ground. Even the most skilled workers cannot match the efficiency of a solar pile driver.

On large-scale solar projects, hundreds of workers would be needed, which is impractical. Additionally, businesses need to account for human error and safety concerns.

4. Versatility & Scalability

Solar power plants occupy acres of space. Installing solar panels over such a large area is a tough job, and doing so over challenging terrain makes things even more complicated.

Reliable industrial equipment is a necessary part of any successful business operating in the solar industry.

5. Cost Savings

The collective benefits of deploying a pile driver have massive cost savings for a business. Work is more efficient; it takes less time and fewer people to accomplish. The solar industry is quickly shifting to mass production of solar panels to reduce unit costs.

Solar pile drivers are pivotal in reducing the adoption cost of solar technology.

The Role of Solar Pile Drivers in Renewable Energy

In the broader context of renewable energy, solar pile drivers emerge as indispensable assets, pivotal in shaping the efficiency, cost-effectiveness, and environmental sustainability of solar projects.

1. Enhanced Project Efficiency

Solar pile drivers streamline the construction process, which has massive time savings for the overall project. There are three critical steps involved in setting up solar farms.

1. Constructing support structures for the solar panels.
2. Mounting solar panels and wiring them to a battery bank.
3. Inspecting the quality and efficacy of power generation.

Installing piles is the first step in constructing a solar farm. Delays in the construction process result in efficiency issues throughout the project.

Solar pile drivers help keep your solar projects on track, allowing developers to capitalize on favorable market conditions and meet growing energy demands promptly.

2. Cost Optimization

Solar pile drivers contribute to significant cost savings throughout the construction process by minimizing labor requirements and expediting installation.

They are also more reliable, and support structures set up using a pile driver last for years without needing any maintenance.

These cost savings translate into more competitive pricing for solar energy, making it increasingly accessible to consumers and driving widespread adoption of renewable energy solutions.

3. Enabling Expansive Solar Fields

An unfortunate and unavoidable drawback of solar technology is its heavy space requirements. Generating more electricity requires solar panels covering a large surface area of the earth.

Regions with lots of sunlight, such as deserts, are difficult places to work, and worker safety is also a significant concern in such job sites.

Solar pile drivers enable businesses to safely expand to such regions with minimal inconvenience. A good pile driver has a higher work output than ten skilled workers combined. Without such machines, solar energy would be inaccessible to most people.

4. Technological Innovation

Solar pile drivers represent technical innovation in the industrial sector.

Solar pile drivers are poised to undergo further technological advancements as the renewable energy landscape continues to evolve. Solar pile drivers are already an innovative take on the bulkier traditional pile drivers.

Future solar pile drivers will see improved automation and precision. With the success of electric vehicles, we could soon see a solar power-driven solar pile driver.

5. Solar Technology Accessibility

As the demand for solar farms grows globally, production and installation costs need to go down significantly. Solar pile drivers are a one-time investment that enables businesses to offer lower construction quotes for solar projects.

The lower equipment and operation costs of pile drivers are improving solar adoption in developing countries that rely on fossil fuels for their low cost and convenience.

How to Choose a Solar Pile Driver?

Selecting the right solar pile driver requires a thorough assessment of the workflow. To ensure optimal performance and efficiency, consider the following factors when evaluating your options:

1. Soil Conditions

Assess the soil characteristics at your project site, including composition, density, and moisture content. Choose a solar pile driver that is suitable for the specific soil conditions. Your machine must be able to traverse the job site easily and have enough power to drive piles deep into the ground.

2. Project Scale and Scope

Determine the size and scope of your solar project, including the number of piles to be driven and the overall project timeline. A single solar pile driver can accomplish most tasks, but having more than one driver, or a high-performance one, will significantly decrease the construction times.

Select a solar pile driver that fits the scale of your project while ensuring deadlines are met and budget constraints are adhered to.

4. Pile Type and Size

Consider the type and size of piles required for your solar installation. Ensure that the chosen solar pile driver is compatible with the intended pile specifications, including diameter, length, and material.

Most solar pile drivers can install up to 15 ft. or 5m tall piles. However, some jobs are more demanding, and you may need to invest in a larger machine.

5. Durability and Reliability

Invest in a high-quality solar pile driver from a reputable manufacturer. Never compromise on durability and reliability. Consider factors such as build quality, maintenance requirements, and warranty coverage to ensure long-term performance and minimize downtime.

6. Cost and ROI

The best pile driver is not always the right choice for a business. You should always consider the cost of the machine and its return on investment (ROI). As a rule of thumb, you should recover the initial cost of the machine within 2-3 years of purchase.

Consider labor savings, project efficiency, and long-term performance when calculating the overall value proposition.

7. Customer Support and Service

Always choose a manufacturer or supplier that offers comprehensive customer support, training, and after-sales service.

Pile drivers are a big investment, especially for an up-and-coming business. Thoroughly investigate the technical assistance, spare parts, and maintenance resources available from the supplier.

FAQs

What is The Difference Between a Pile Driver and a Solar Pile Driver?

A standard pile driver is meant for building construction work, among other things. It is very large and can drive piles that reach upward of 100ft. Comparatively, solar piles are half the size of support piles, with a maximum length of 20 feet.

What Shape of Piles Should You Use For Mounting Solar Panels?

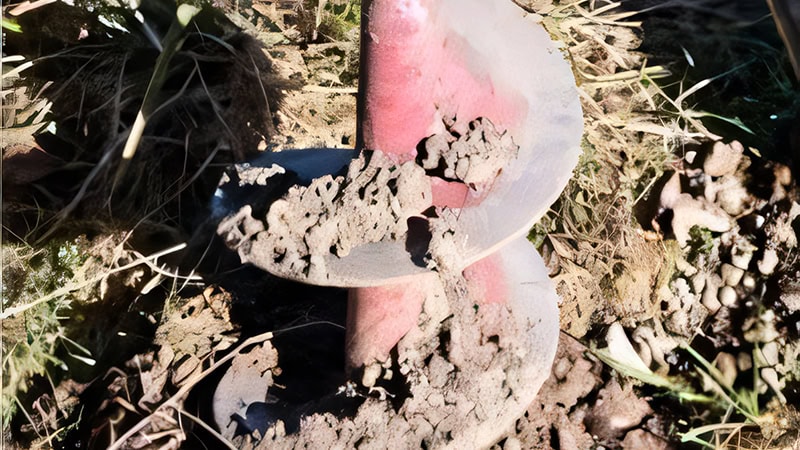

The two most common shapes for piles are I-beams and Helical. I-beams are more cost-effective and Helical beams are easier to install. Helical piles also provide better stability at shorter lengths.

How Deep Should You Install a Pile?

Pile installation is directly related to the load applied. Solar panels are lightweight, so the driving depth should be less than 10 feet, depending on the soil conditions.

Are Load-Bearing Piles Better Than Friction-Bearing Ones for Solar Farms?

Load-bearing piles will always offer better rigidity than friction-bearing ones. However, for firm soil, the difference between the two pile options is negligible.

Conclusion

Harness the Power of the Sun with Everstar Pile Drivers!

Everstar leads the industry with a decade-long legacy of high-tech heavy machinery excellence. Trusted by hundreds of global construction firms, our pile drivers meet stringent safety standards like ISO9001.

Our Pile Drivers are the best in class when it comes to solar industry construction. They are designed to outperform the competition at a competitive price. We offer extensive after-sale services, such as onsite training and installation, that will enable your business to hit the ground running.

So, take your business to the next level with Everstar. Contact us Now!

In today’s rapidly evolving construction industry, efficiency and sustainability have taken center stage.

Following the success of electric vehicles, electric backhoe loaders have emerged as a promising solution that provides a good balance of power and performance.

These versatile machines represent a significant step forward in the construction sector’s journey towards reducing carbon footprints and enhancing operational effectiveness.

In this article, we delve into the world of electric backhoe loaders, explore their benefits and applications, and contribute toward a sustainable future.

Overview of Electric Backhoe Loaders

Electric backhoes follow the trend of converting conventional gas and diesel-powered devices into electric equipment.

The success of electric vehicles has shown that eclectic motors have the raw power to accomplish such tasks and that there is a demand for greener alternatives.

Backhoe loaders require a lot of mechanical power for basic operation. Such power can only be attained through an equally powerful energy source.

Fossil fuel was the only viable source for driving heavy equipment for many years. Older Lead-Acid batteries could not replace fossil fuels.

However, the increasing mass adoption of laptops and smartphones has driven research into battery technology.

Advances in battery technology and the development of high-capacity Lithium-Ion batteries have enabled the electrification of powerful industrial equipment.

Lithium-ion batteries power the backhoe loader’s drivetrain and hydraulic motors, which previously relied on a combustion engine.

The battery simultaneously powers two hydraulic mechanisms; one controls the boom arm for the backhoe, and the other controls the front loader arm.

Electric vs. Diesel Backhoe Loaders

Electric construction equipment, such as backhoe loaders, has only recently entered the workforce. The first fully electric backhoe loader was launched in 2020.

In the grand scheme of things, the electric equipment market is still in its infancy.

However, the electric backhoes are already showing a promising start. They can match the power and performance of diesel-powered backhoe loaders while running on renewable electric power.

Here is a brief comparison of the key differences between electric and diesel machines.

Hydraulic breakout forces refer to the lift capacity of the backhoe loader at the tip of the front and back boom arms.

Electric motors can output hydraulic breakout forces equal to a diesel engine. However, the electric option accomplishes the task more efficiently.

Buyers should also pay close attention to the weight of electric construction equipment. Lithium-ion batteries are almost ten times heavier than a full tank of diesel. A standard 80-90kWh electric backhoe weighs around 1,300 pounds or over half a metric ton.

In electric backhoes, a single battery powers the drivetrain and hydraulic motors separately. Traditional backhoes use a small battery and IC engines for all operations.

Why are Electric Backhoe Loaders the New Trend?

The construction industry is already shifting to electric and hybrid equipment due to their many advantages over traditional diesel-powered machines.

Electric backhoe loaders, in particular, are gaining popularity due to several advantages they offer, especially regarding environmental benefits.

Here are some reasons why they are becoming the new trend.

1. Zero Emissions

One of the most significant advantages of electric backhoes is that they produce zero emissions while operating.

Traditional diesel-powered backhoe loaders emit harmful pollutants such as nitrogen oxides, particulate matter, and carbon dioxide.

Switching to electric power results in cleaner air and a healthier environment,

Going all-electric also prevents further damage to our delicate ecosystem, making electric backhoes an attractive option for environmentally conscious businesses and governments aiming to reduce carbon footprints.

Many countries mandate the use of diesel exhaust fluid (DEF) in construction equipment to reduce harmful exhaust gases.

However, if you deploy electric equipment at job sites, DEF regulations don’t apply to you.

2. Reduced Noise Pollution

Noise pollution is synonymous with construction equipment. The problem has gotten so bad that many countries, including the US, have had to release guidelines for noise reduction during nighttime construction.

Electric backhoe loaders run much quieter than their diesel counterparts.

This reduction in noise pollution is especially beneficial for nighttime operations and construction sites in urban or population-dense residential areas.

Operating electric construction equipment is also much safer for workers, as the absence of engine noise helps them better communicate and avoid accidents.

3. Energy Efficiency

Electric backhoe loaders are more energy-efficient compared to diesel-powered ones.

According to the US Department of Energy, an all-electric vehicle is nearly three times more efficient than a gasoline-powered one.

DC electric motors have a higher energy-to-propulsion conversion rate than internal combustion engines, resulting in less energy wasted as heat during operation.

When the backhoe loader isn’t actively running during idle hours, a diesel engine continuously consumes fuel. In comparison, electric backhoe loaders enter a low-power state and conserve energy.

4. Lower Operating Costs

While the initial investment in electric backhoe loaders may be higher than diesel-powered ones, they typically have lower operating costs over their lifespan.

Diesel-powered machines quickly burn through the fuel and require daily tank refills. On the other hand, electric construction equipment can be powered by solar energy, bringing the energy costs down to near zero.

Additionally, electricity is often cheaper than diesel fuel, resulting in lower fuel costs over time. The average electricity cost in the US is 16 cents per kWh.

Thus, a fully electric backhoe loader with its 90kW lithium-ion battery would only cost $14.4 for a full charge.

Diesel currently costs $3.64 per gallon. A top-up for an average diesel-powered machine with this 35-gallon fuel tank will cost $127.4.

All energy costs were recorded at the time of this article’s publishing; prices will vary over time.

5. Lower Maintenance Costs

A lesser-known benefit of electric equipment is its considerably lower maintenance costs. Diesel-powered construction equipment, such as a backhoe loader, requires regular engine oil replacement, fuel line wear assessment, and engine knocking can occur.

Electric equipment replaces the older internal combustion engine with a DC motor and the fuel tank with a lithium-ion battery.

This closed system has fewer moving parts and negligible corrosive liquids. Additionally, a single battery powers the engine (DC motor) and hydraulic motors separately, further reducing points of failure.

Short-term maintenance costs might not seem like a big deal, but the savings can increase over time.

Some EV manufacturers recommend an annual vehicle service and maintenance check, compared to the weekly or monthly service for gas-powered machines.

6. Government Incentives

Governments worldwide are increasingly offering incentives and subsidies to promote the adoption of electric vehicles, including backhoe loaders.

The US offers significant tax credits for vehicles using alternative fuels such as natural gas, liquid hydrogen, and electricity.

Incentives such as tax credits, grants, or rebates make electric options more financially appealing for businesses and contractors. These incentives can help reduce the initial investment cost of electric backhoes.

These government initiatives have played a huge role in the rapid growth of the electric equipment market.

7. Meeting Environmental Regulations

With the global temperature increase, governments worldwide have turned to more stringent environmental regulations.

Industries are now more than ever under pressure to reduce their carbon emissions and environmental impact.

Construction equipment that has a notoriously large carbon footprint now has excellent electric vehicle options, such as electric backhoe loaders, that meet these regulations and demonstrate a business’ commitment to sustainability.

Applications of Electric Backhoe Loaders

Electric backhoe loaders find applications across various industries due to their versatility, environmental friendliness, and efficiency. An electric backhoe can do everything a diesel one can while running on renewable energy.

Here are some examples of their applications in construction projects, urban development, and other industries:

1. Construction Projects

Electric backhoes cover several work areas at a construction site. Construction companies use backhoes for small and large-scale projects.

The small and more agile design of backhoe loaders enables them to operate in the narrow streets of residential areas.

• Excavation and Digging
• Material Handling
• Road Construction
• Demolition Clearance

2. Urban Development

In urban areas, electric backhoe loaders are used to install and remove road signs, bollards, etc. Occasionally, you will see a backhoe used for landscaping work.

The silent operation of electric backhoe is a key reason for its use in urban areas,

• Road & Infrastructure Maintenance
• Underground Water & Sewage Lines
• Landscaping & Green Infrastructure

3. Agriculture

On the agriculture side, electric backhoe loaders offer various benefits. Farmland is vast, and the nearest gas station is often several miles away.

Additionally, farmers have enough space to install a few solar panels or even a windmill for better self-sufficiency.

• Land Preparation
• Crop Planting
• Fence Construction
• Irrigation Ditches

4. Mining and Quarrying

Electric backhoes play a supporting role in the mining industry. Mining and quarrying require large, multi-story tall excavators for digging and giant dump trucks for material removal.

Backhoes help prepare the area for later excavation and extraction.

• Site Preparation
• Clearing Land
• Material Handling
• Building Access Roads

5. Waste Management

Waste management sites can utilize electric backhoe loaders for various applications. These machines excel at moving and managing heavy waste material from a safe distance.

• Spreading & Compacting Waste
• Digging Holes & Ditches
• Managing Composting Areas

The Challenge of Electric Backhoe Loaders

While electric backhoe loaders offer numerous advantages over diesel engines, their adoption also presents several challenges.

1. Higher Initial Investment

Electric backhoe loaders generally cost more than their diesel counterparts. The higher cost comes down to using expensive components such as electric drivetrain components, batteries, and smart monitoring systems.

This can be a barrier for businesses, especially smaller contractors or construction companies with limited capital, despite potential long-term savings.

Additionally, businesses already invested in diesel and gasoline construction equipment cannot justify the extra cost of shifting to alternative fuels.

2. Charging Requirements & Infrastructure

A diesel-powered machine can be refueled in a few minutes—half an hour if you account for the drive to and from the gas station. However, an electric backhoe charger connected to a 220v power supply will fully charge overnight.

Being unable to use a vehicle for eight or more hours during its charging period is unviable for most businesses.

Higher voltage EV chargers can go up to 900v, decreasing the charge times but at a cost. Pulling that much electricity at any given moment will put unnecessary strain on the local electric grid.

Current electricity infrastructure doesn’t have the high load capacity required for electric construction equipment. A business with two or more electric backhoes will struggle to charge them simultaneously on commercial electricity grids.

Additionally, the availability of charging stations may be limited in certain areas, posing challenges for operations that require frequent or continuous equipment use. Installing an electric vehicle (EV) charger at a job site isn’t ideal.

3. Long-Term Benefits vs. Short-Term Costs

While electric backhoe loaders offer long-term benefits such as lower operating costs, reduced emissions, and potential regulatory incentives, some businesses may focus primarily on short-term financial considerations.

It could take years for a business to see a real return on investment (ROI) after shifting to electric construction equipment. The first fully electric backhoe loader claims an ROI of five years.

The higher upfront cost and lack of education about electric vehicles may deter potential buyers who prioritize immediate cost savings over future benefits.

Businesses will often choose to prioritize old, reliable technology that has been effective for decades rather than take the initiative toward greener electric backhoes.

The Future of Electric Backhoe Loaders

Electric construction equipment has a bright future. In just a few short years, we have seen electric forklifts, trucks, and backhoes take to the market with positive consumer feedback.

Backhoe loaders were already a versatile and useful tool, but their utility has greatly expanded with the incorporation of DC motors into the design.

Right now, the biggest hurdle for electric backhoes is electricity infrastructure. As more and more EV charging stations pop up and the charging technology improves, the value proposition of electric construction equipment will soar.

Conclusion

Electric backhoe loaders are an improved version of traditional diesel-powered backhoes. They offer similar, if not better, functionality while lowering emissions and reducing an operation’s carbon footprint.

Current electric backhoes have a higher sticker price and a relatively long ROI period. The benefits of switching to an all-electric backhoe are greater for larger construction companies. Smaller businesses will still see better returns on diesel backhoes.

Get the Ultimate Backhoe Loader from Everstar!

Experience unmatched efficiency and reliability with Everstar’s cutting-edge backhoe loaders. Built with precision engineering and backed by over a decade of industry expertise.

Our backhoe loaders meet rigorous international safety and quality standards, including ISO9001 and CCC compliance.

Customer satisfaction is at the forefront of our business. We offer FREE training and installation services alongside a robust parts guarantee.

Elevate your business to new heights with Everstar. Contact us Now!

Drilling holes in the grounds on construction sites is a real hassle. Traditional tools make it time-consuming and need manpower. Breaking through the compact ground and digging is a daunting task. However, auger has made it more convenient.

In this blog post, you’ll learn about auger. You’ll also explore the types, advantages, and applications of auger. So, let’s get into it.

The use of Auger

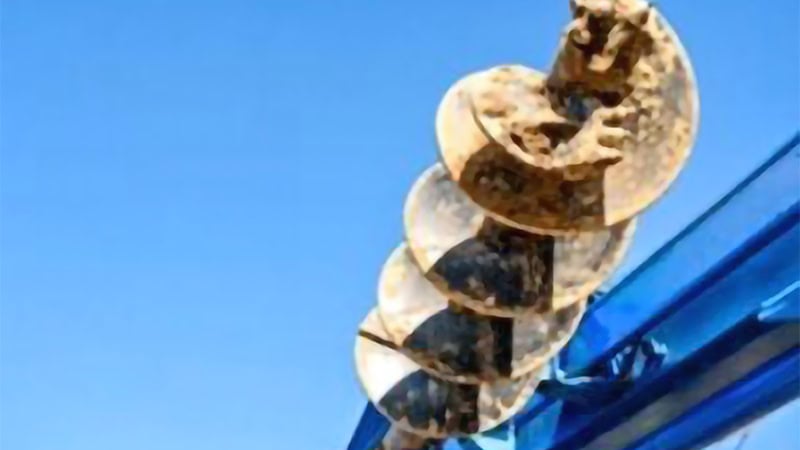

An auger is an essential tool capable of efficiently penetrating various materials such as soil, wood, ice, and metal… It is also known as wimbles, borers, and gimlets. It is a spiral tool for drilling holes into the ground and other materials and surfaces. According to the University Digital Conservancy, augers are effort-saving tools that can facilitate small farmers digging holes into the soil rapidly.

An auger comprises a rotating helical screw blade attached to a rotating shaft, known as flighting. The rotation of the flighting scrapes and pushes the drilled material along the blade like a conveyor belt. This material is then moved out. You can attach the auger to other equipment, like skid steers or cranes, to make it suitable for complex tasks.

How Does an Auger Work?

A drill consists of a helical screw blade mounted on a central spindle or shaft. The blade is made of a sturdy material, like metal, and extends along the length of the shaft. The helical blade’s pitch and shape impact the tool’s performance and efficiency.

The auger is lined with an electrical power source that rotates the motor. As the tool is powered, the shaft attached to the helical blade begins to rotate. Depending on the particular design of the auger, this rotational motion can be clockwise or anti-clockwise.

As the auger is positioned close to the soil and you switch on the power supply, the helical blade begins to engage with the soil. The rotating blade looks like a screw moving into the wall and moves the soil upwards along the flight.

The helical structure of the blade offers efficient motion for moving material to create a perfect hole. The rotation of the central shaft facilitates the transportation of material along the length of the blade. The space along the length of the blade drags the material that needs to be eliminated from the ground to create a hole and move it upwards.

The discharge point at the top releases the material into a container. The auger can also discharge the material onto a conveyor belt or transfer it to some other spot based on its application.

What You Need to Know About Auger Sizes?

Auger drill bits are available in various sizes for multiple applications. You can find auger drill bits from 2 inches to 18 inches. Small-sized augers are used for gardening. Typically, 2 to 4-inch auger drill bits are designed for small garden projects, like planting bulbs and veggies.

5 to 7-inch auger drill bits are used for digging post holes for larger gardening projects, like planting trees, bushes, and large-sized plants. 8 to 9-inch auger drills are used for digging holes for fence posts or mailboxes.

More significant auger drill bits are used for construction projects. Bigger auger drills allow you to dig deep into the ground, providing structural stability for huge structures.

4 Types of Augers

Various augers are designed for multiple purposes. Hand auger, earth augers, hydraulic auger, post-hole auger, garden auger, grain auger, ice auger, and auger bits are some common auger types.

Here is an overview of a few of them you can use for construction:

1. Hand Auger

A hand auger is a manual drilling tool. You can use it for small holes at construction sites. A spiral shaft with a handle allows it to rotate and dig into the soil. Despite the portability of handheld augers, don’t ignore your safety. Put on your safety goggles and other gear while using this tool.

2. Hydraulic Auger

A hydraulic auger is used for deep drilling. The hydraulic system makes it more powerful than other types. It also offers more control over the drilling process. You can attach it to a skid steer or excavator for effective drilling.

3. Earth Auger

Earth auger effectively digs holes into the ground. They are designed for agricultural and construction purposes. It has a long metal pipe attached to a spiral-shaped blade. Some earth augers also come with two blades for various tasks. Earth auger is also handheld and resembles an industrial pogo stick. They effectively scrape and cut the soil and remove it to make holes for farming or other purposes.

4. Auger Bits

An auger bit is a versatile attachment that can be mounted on tractors, excavators, or skid steer loaders… Their cylindrical shank with helical twist drills into various materials. Auger bits are perfect for boring holes and other heavy-duty tasks.

4 Specific Applications of The Auger

Auger has diverse applications in various industries. The following are some common uses of auger:

1. Pile Driving

Constructing buildings is almost impossible without digging deep holes. Augers enable you to install piles deeper for structural support and integrity. They can penetrate various types of soils, streamlining your construction project.

2. Road Construction

Road construction is a time-consuming process that involves creating a stable foundation. In addition, they are also used to create holes for installing traffic signals, sign boards, and guardrails.

3. Excavation

Auger is also a helpful tool for excavation. Portable and machine-attached augers are used to create channels for installing drainage systems, utilities, and pipelines.

4. Utility Pole Installation

Installing utility poles also involves digging deep holes. Augers helps install utility poles for telecommunication networks. They dig holes of the right depth to accommodate the pole securely.

Advantages and Disadvantages of Auger

Augers offer various advantages. However, they also have some flaws.

Advantages of Auger

The following are the benefits of using auger:

• You can find augers in various sizes and designs for various purposes. This versatile tool is suitable for multiple applications, from digging holes for farming to drilling for construction purposes.
• Augers are efficient tools, allowing users to drill holes quickly and with minimum effort. They are an effective solution for projects where many holes need to be dug in a short time.
• They are suitable for various materials. You can dig various types of soil, including clay, sand, or loam, and drill into ice or wood.
• According to Penn State University, an auger does not require fluid to dig. This makes it an effective solution for areas where water is scarce.

Disadvantages of Auger

Here are the disadvantages of auger:

• Augers are not cheap. You need a considerable initial investment to purchase this tool. The price can vary depending on the size and quality of the tool.
• This tool requires regular maintenance. Without it, your tool will be damaged. Clean your tool regularly and lubricate it to keep it in good condition.
• Augers are not suitable for large industrial projects that require tool-deep holes. It would be best if you switched to advanced tools for such applications.

Auger vs. Drill: What’s The Difference?

Auger and drills are pretty similar; however, both have some differences that distinguish them.

What is the Role of the Auger in Industrial Construction?

Augers are used for various tasks in industrial construction. You can’t use them to cut through heavy rocks and bulky material.

However, they are crucial for several tasks. Attaching them to excavators or skid steers allows you to create precise, deep holes required for foundational support in large-scale structures.

They are also used to drill small holes for large-scale infrastructure projects. Moreover, auger drilling creates holes for installing telephone poles and fences. It also makes it easy to prepare a garden and plant trees or saplings.

FAQs

1. What is an auger used for?

Auger is used for various purposes. You can dig holes for gardening, ice fishing, and construction purposes.

2. What is auger in agriculture?

An auger is a handheld tool used for digging and removing soil to create a hole. It is used for planting and preparing agricultural trenches.

3. What is another name for auger?

Auger is also known as a borer, drill, gimlet, and dibble.

Conclusion

An auger is an essential tool for various industries. Its unique design makes it a perfect solution to drilling holes that might take a long time. With its sturdy manufacturing, this efficient tool allows you to dig and remove the soil for gardening, irrigation, ice fishing, and cleaning purposes.

While considering the design, you must also pay attention to the auger provider. Everstar Group is the best place to get a quality auger, pile driver, pulling machine, or drilling machine. With this innovative solution, you can streamline your projects and complete them timely.

Uncover the Potential of Auger With Everstar Group!

Buying an auger is a perplexing task as numerous suppliers are available. Everstar Group is among the top suppliers of high-end augers. Contact us today to get an auger for your gardening or construction project. Consult our experts to learn about various options and get your auger.

Why are Drill Bits Important for Water Well Drilling?

The selection of the right drill bit is pivotal in the success of any water well drilling expedition. Sometimes, multiple types of drilling bits are used to dig a single borewell because each type has unique capabilities.

Some major factors that are directly affected by drill bit actions and its type are:

• Drilling speed and Rate of penetrations (ROP) of borewell.
• Wear and tear of a drill bit.
• Overall drilling cost of the project.
• The success of the drilling project.
• Maintaining borehole stability.
• Drilling accident probability and borehole stability.

Hence, choosing the optimal drilling location and considering the geology and logistics of the place are critical for a successful well-water drilling project.

How to Choose the Right Water Well Drill Bit?

Many factors contribute to selecting the right water well drill bit, including the experience gained from working in the field for years.

Here are the critical factors that any drilling service company must account for before purchasing the drill bits.

1. Geological Condition

It’s a no-brainer that the geological condition is a major determining factor for the selection of drill bits. Surveyors estimate rock formation in a particular area and conduct drill bit research.

The upper earth’s surface usually has overburden, a combination of clay, sand, silt, and shell. As the hole digs deeper closer to the aquifer, hard rocks may block the way. Drill bits are designed to cater to different earth formations.

2. Well Diameter and Depth

Water wells have different diameters as the initially bigger holes are dug, and then eventually, the drill bits become leaner. Similarly, as the hole gets deeper, the rock formations become tough and abrasive, which can accelerate the wear and tear of the tool.

There is a “Cost per Foot” equation that helps estimate the price of a drill bit depending on the rotation per minute (RPM) it can achieve and the distance it can penetrate before tool failure.

3. Budget Consideration

Drill bits come at varying prices, which, of course, plays a role in deciding the type of drill bit required.

Apart from the upfront price, the total cost spent during downtime for replacing the worn tool is also considered. Some heavy-duty PDC drill bits last longer but have a much higher upfront cost.

The cost also depends on the type of material used to build the tool. Some water well drilling rig companies get expensive drill bits on rent instead of buying a new one, which is more economical for the business.

4. Drill Bit Testing

If the drilling bit supplier or manufacturer allows it, you can test the drill bit for water well drilling before buying to ensure you have the best product.

The bit’s functionality depends on the drill equipment weight and the RPM it can achieve, considering the friction it faces in any rock formation.

5. Consult with Experienced Professionals

The on-field experience matters, and hiring experienced surveyors or investing in a consulting firm can save you a lot on the drilling water well costs in the long run. As drill bit directly affects the success of your project.

Contact Us!

6 Types of Water Well Drill Bits Mostly Used in Industry

Now that we know the basic factors that help in choosing the right water well drill bit, let’s explore some of the options available on the market and their unique characteristics. We’ll discuss the most commonly used tool bits in the water well drilling industry.

1. Milled Tooth Tricone Roller Bits

These bits have rotating cones with hardened teeth, usually made with steel, that crush and grind the rock formations as they rotate. They are primarily used in softer rock formation and are economical to use in most cases.  The rolling action of teeth gouges the rock formation into fine cuttings.

Pros:

• Suitable for softer rock formations
• Good Rate of penetration
• Economical

Cons:

• Roller bearing susceptible to wear

Insert Tricone Bits

Similar to roller cone bits, tricone bits have three rotating cones but with inserts made with tungsten-carbide steel, which is more durable than steel.

The tungsten carbide inserts (TCI) bit crushes and gouges the rock underneath the surface. It offers versatility for drilling through various formations. TCI bits come in a variety of shapes and sizes and, due to their appearance, are also called button bits.

Pros:

• Suitable for medium to hard and abrasive rock formations
• Good Rate of penetration
• Economical

Cons:

• Roller bearings are susceptible to wear

2. PDC (Polycrystalline Diamond Compact) Bits

PDC bits are fixed cutter bits featuring diamond-enhanced cutting tips that provide excellent durability and efficiency in drilling through hard formations.

This drill type has no moving parts, and it works by shearing the tough rock formations. Some common examples are PDC, Natural Diamond, and Impregnated bits.

Pros:

• Shear through extremely hard rock formations
• Higher drilling speed.
• Longer life span

Cons:

• Higher upfront cost.

3. Drag Bits

Step drag bits contain multiple fixed blades featuring various cutting angles. These bits are best suited for digging the hole initially, and depending on the drag bit type, they can cut through soft to hard rock formations.

Pros:

• Suitable for a wide range of hard rock formations
• Higher drilling speed

Cons:

• Not suitable for very hard rock formations

4. Auger Bits

Auger bits have helical blades or screw-like threads that excavate loose materials and soil, making them suitable for shallow water well drilling in softer formations. Some of its types include single/double cut flat and rock augers.

Pros:

• Good for soft to medium rock formations
• Higher drilling speed

Cons:

• Not suitable for very hard rock formations

5. Claw Bits

Claw bits feature unique finger-shaped cutters that rip through the rock formations. These finger blades are replaceable and prevent over-torquing, leading to a longer life span. These bits work effectively in dense clay formations.

Pros:

• Best suited for dense clay formations
• Higher Rate of penetration.

Cons:

• Limited area of applications

6. Reamer Bits

The reamer bits are usually required to broaden the existing borehole and bring stability to it.  Mostly used on softer rock formations like clay.

Pros:

• Good for the clay rock formation
• Higher drilling speed
• Inexpensive

Cons:

• Limited usage

Maintenance and Care for Drill Bits

Drilling operators should follow these maintenance practices for optimum performance, longevity, and reliability of their drill bits.

1. Regular Inspection

Always conduct thorough visual inspections of drill bits before and after each use to check for signs of wear, damage, or deformation. It also prevents unnecessary downtime and greatly reduces drilling costs.

2. Sharpening

Poor Rate of penetration (ROP) and drilling performance are clear indicators of blunt tools. Sharpen or recondition drill bits as needed to maintain cutting efficiency.

3. Replacement

Sharpening the tool helps to some extent, so when the time comes, replace worn or damaged drill bits promptly to prevent poor drilling performance, potential equipment damage, and downtime losses.

4. Storage

Make sure to store drill bits in a clean, dry environment, away from moisture, extreme temperatures, and corrosive substances.

5. Training and Education

Make sure the drilling operators are properly trained in drill bit maintenance and care procedures to maximize the lifespan and performance of the equipment.

Methods and Steps for Water Well Drilling

Let’s explore the process of water well drilling briefly.

1. Site Assessment

First, the drilling company identifies suitable drilling locations based on geological data. They consider groundwater depth, quality, and accessibility, as well as regulatory requirements.

2. Equipment Setup

Next, the company sets up the drilling rig according to manufacturer guidelines. The operators ensure proper installation and setup of water well-drilling rigs, pipes, and accessories.

3. Drilling

Once the equipment is ready, the drilling service provider initiates drilling using selected methods (rotary, percussion, etc.). Expert operators monitor progress, adjust parameters, and drill to the desired depth.

4. Casing Installation

Once the drilling tool hits the groundwater pore space, the mechanics install casing to prevent borehole collapse and eliminate groundwater seepage. In deeper wells, this process is done simultaneously with drilling.

5. Pump Installation

Finally, the water pump and associated equipment for groundwater extraction are installed.

6. Testing and Maintenance

The drilling company conducts the pump tests to assess well performance. They also monitor groundwater levels and quality for any changes over time.

FAQs

1. How Do Drillers Know Where To Drill For Water?

Drillers use geological surveys and groundwater mapping to estimate the right location to drill well water. These are called estimates because there is no way to be 100% sure about the presence of groundwater.

2. What’s Better: Black Oxide Or Titanium Drill Bits?

Black oxide coating helps with the corrosion resistance of drill bits, but when it comes to durability and heat resistance, the titanium drill bits are better. However, titanium drill bits are pricier.

Conclusion

By going through this guide, you’ll be well-versed in the basics of water well drill bits and the factors your business needs to consider before investing in high-performing drill bits.

Apart from drilling tools, ensure the drilling machine manufacturer offers value-added services like maintenance and warranties for tools.

Take Your Drilling to the NEXT Level With Everstar Drill Bit!

For more than ten years, Everstar has been a reliable ally in global industrial construction and drilling projects. Our state-of-the-art drilling machines and equipment guarantee exceptional performance. Coupled with competitive pricing of spare parts and exceptional after-sales service, our technology provides unparalleled value.

Ready to take your well-drilling project to the next level? Contact us today for a Free project evaluation.

Pile driving is a fundamental technique for constructing buildings, bridges, and other structures. It is a precise, cost-effective approach for driving piles deep into the ground to create foundational support.

However, pile driving doesn’t go as smoothly as we anticipated all the time due to several factors. Numerous issues arise while driving piles into the soil that can damage the piles or affect hammer pile alignment.

In this blog post, you’ll explore the common pile-driving problems and solutions. You’ll also learn about the security measures that can make pile driving safe and effective. So, let’s get into it.

Problem 1: High Blow Count Than Expected

Before starting pile driving, you need to conduct soil analysis. It enables you to determine the number of blows to drive your piles to the desired depth.

However, if the blow count is higher than predicted by soil analysis, there might be some issues with the soil or pile driving system. Sometimes, the problem is with both the soil and your pile-driving system.

To prevent this issue, check your pile’s deliverability. You also need to pay attention to your pile-driving system, as each system is compatible with a particular pile type. You need to ensure their compatibility to prevent this issue.

If compatibility between pile driving system and pile type is not the issue, dig into other issues with the driving system operation. It should comply with the manufacturer’s guidelines.

If you do not observe any of these issues, take dynamic measurements. These measurements will enable you to determine if the problem is soil behavior or the driving system.

• If the issue is with the driving system, you will notice preignition and low hammer efficiency. If the cushion is too soft, it also indicates a problem with your driving system.
• Sometimes, soil resistance increases temporarily with subsequent relaxation, which leads to high blow counts. Another problem that you might encounter is greater soil strength than anticipated. Moreover, high soil damping is another common issue.

Problem 2: Piles Driving Deeper than Expected

Another common issue arises when your piles are driving deeper than estimated. The main reason for this problem is lower soil resistance than you have predicted before pile driving. Sometimes, your pile-driving system works better than your expectation and drives your pile deeper.

To cope with this problem, you need to determine the change in soil strength. You can conduct restrike tests to estimate any fluctuation in soil strength.

If the restrike test shows low capacity, you need to check the performance of the drive system. Dynamic measurements enable you to learn about the restrike capacity and drive system performance.

If you find drive system performance to be the same as predicted and the blow count is low, the issue may be because of weaker soil conditions than estimated.

You need to install the piles deeper than originally estimated. You may need more piles to support the load. You need a structural engineer at this point to alter the design of your project.

Problem 3: Piles are Driving Out of Their Locations

Pile shifting is common at construction sites. However, they shouldn’t be shifted by more than 4 inches from the original spot.

The shifting range is referred to as the tolerance limit. Sifting piles out of their original location is a common problem. It mainly occurs due to soil obstructions or problems with hammer-pile alignment control.

The issue might be because of pile obstruction. In that case, you need to remove the obstruction. According to Nebraska Transportation, removing the obstruction helps resolve this issue when it lies within 3 feet of the working grade.

Suppose the obstruction lies deeper than 3 feet or below the water table. You need to excavate the soil. Spudding or predrilling of pile locations are the most suitable techniques to do this. Poor hammer-pile alignment control can also cause pile shift. A pile gate template or fixed lead can improve it.

Problem 4: Damaging of Concrete Pile Near The Head

Another issue that you might encounter during pile driving is the damage of the concrete pile near the head of the pile. Poor pile quality is a leading cause of this issue.

Poor hammer performance and inaccurate hammer pile alignment also lead to pile spalling. High stress on the pile head is another common reason for the damage to concrete piles.

To resolve this issue, you need to determine pile head stress for observed blow count. You need to compare the head stress with allowable stresses.

If you find stress on the pile head to be higher than allowable stresses, you need to add pile cushioning. If the stresses are low, look for other causes. Poor pile quality, poor hammer performance, or inaccurate hammer pile alignment can also lead to spalling.

Problem 5: Blow Count Lower Than Anticipated

Sometimes, the blow count is lower than you have anticipated during pile driving. It occurs due to low soil resistance or pile breakage below the grade.

To fix this problem, you must reconsider the field procedure and splice detail. Determining these factors will enable you to understand the cause of splice failure. Tensile stresses and compressive stresses at the pile toe are among the crucial aspects.

If they are in the acceptable range, you need to look for some other issues. Obstructions and uneven toe contact on a hard layer can lead to this issue. You also need to pay attention to possible causes of pile toe damage.

Problem 6: Displacement of Previously Installed Piles

Your previously installed piles move. This movement may be caused by soil displacement or soil failure in adjacent layers.

To resolve this issue, you need to retrieve the installed piles or change the sequence of pile installation. Predrilling the pile locations is the best way to reduce ground movement and prevent pile displacement.

Problem 7: Unavailability of Hammer That Meets Driving Stress and Resistance Limits

The compatibility between the hammer and the driving stress and resistance limits is crucial. The unavailability of the right hammer can affect pile driving. This leads to a high value for both calculated stresses. It also results in increased blow counts.

You can resolve it by increasing the pile impedance. Improving material strength can also help you cope with this problem. You can also redesign to achieve lower capacities.

The end-of-driving capacity is kept lower than required if you are dealing with fine-grained soil. Static load and restrike testing can fix the issues with the capacity.

Problem 8: Development of Partial Horizontal Cracks in Concrete Piles in Easy Driving

Sometimes, concrete piles crack horizontally during pile driving. It mostly occurs in hard driving. According to IJARSCT, it happens due to poor hammer-pile alignment, which leads to bending.

Another possible cause of this issue is high combined tension and bending. Pay attention to hammer-pile alignment. If hammer-pile alignment has no issue, check tension and bending.

Problem 9: Driving of Piles Out of Alignment

You might also experience alignment issues during pile driving. It occurs due to insufficient hammer-pile alignment control. Poor soil conditions also lead to this problem.

Soil issues also contribute to this problem. Obstructions near the surface and steeply sloping bedrock with minimal overburden material are the major problems that occur.

You can fix this problem by improving the hammer-pile alignment control. A template, pile gate, or fixed lead system can boost the ability to maintain alignment tolerance.

Security Measures Provide Protection

Here are some security measures that provide protection during pile driving:

• You should wear protective gear, including canvas gloves and goggles. If you are working at a marine site, you should wear a life jacket.
• Keep the working site clean. Clear any unwanted material, debris, or pile remains.
• Place stowed materials in a secure place. Stack them at a safe site or secure them to prevent them from sliding or falling.
• Frequently inspect your rope and cables to ensure they are in good condition. Replace any worn-out rope to prevent accidental falls.

FAQs

1. What are the issues with pile driving?

You can encounter various problems during pile driving. Some common issues include lower or higher blow counts than expected, lateral movement of installed piles, spalling of concrete piles near the head, and piles driving out of the alignment or out of the location.

2. What are the hazards of pile driving?

Hazards during pile driving include poor soil conditions, piles falling, lifting and rigging, excavation collapse, and electrical hazards.

3. What are the causes of failures in pile foundations?

The main causes of pile foundation include lack of adequate boring, inaccurate soil classification, soft strata under the pile tip, inadequate driving formula, and misinterpretation of load.

Conclusion

Pile driving is a common approach for construction. However, several problems are associated with the pile and driving system, making the process challenging. You might encounter higher or lower blow counts than initially predicted, or your piles might drive out of the location.

Resolve them using appropriate solutions. By employing preventive measures and safety protocols, you can ensure smooth pile driving.

Get Pile Drivers from Everstar Group!

A reliable pile driver is crucial for preventing common problems that arise during pile driving. Everstar offers you high-quality piler drivers that enable you to install the piles at the required depth. Contact us today to get the best pile drivers for your construction project. Our team will help you choose the right tool for your needs.

There can be a lot of different types of aerial lifts that enhance the work platform vertically to improve efficiency, and knowing all their uses will help you understand the features better.

What are Aerial Work Platforms?

Aerial work platforms are mobile machines designed to elevate workers and materials to perform tasks at height. They offer a safe and stable platform compared to ladders or scaffolding, making them a popular choice for various industries.

These platforms are made in various styles and designs to maintain different applications. The platforms are moved vertically, upwards, and downwards, with the help of lifts.

An aerial lift can be of various applications. Among the varied types of aerial lifts, the most popular one is a scissor lift.

4 Types of Aerial Work Platforms and Their Uses

Depending on why you want to use the work platforms and where you can choose among some options.

There are several main types of aerial work platforms, each with its own advantages and applications, such as rough terrain lifts and a hydraulic lift system. They are mostly named for the types of aerial lifts used.

1. Scissor Lifts

These feature a scissor-like mechanism that expands vertically, providing a stable platform for overhead work.

The metal body is collapsible and can fold into itself to different heights. It can lift a large amount of weight capacity and has the potential to carry a large surface area of the work platform.

Even though these scissor lifts can expand to a considerable height, they do not take up a lot of space when completely folded down.

Subtypes: There are a lot of subtypes for scissor lifts that are used in different industries, depending on the requirements.

For example, electric scissor lifts are used for indoor applications and a rough-terrain scissor lift can be used for uneven surfaces.

Key Features:

• High lifting capacity,
• A very spacious platform,
• Excellent stability.

Common Uses:

• Maintenance of high-rises, upper windows, overhead machinery, etc.
• Commercial painting in larger spaces. Sometimes, creative painting also uses scissor lifts.
• Electrical work at the industrial and factory levels.
• Installation tasks in warehouses and factories.

2. Boom Lifts

Boom lifts work on hydraulic power, and the hydraulic lift system makes the job smooth and efficient. These offer a wider range of movement with a hydraulic arm that can extend and rotate. Over the years, articulated boom lifts have been used to do complex lifting works.

Subtypes: There are some very well-known types of boom lifts used in workshops and factories. Some of the subtypes are Articulated Boom Lifts, Knuckle Boom Lifts, Telescopic Boom Lifts, etc.

Articulating boom lifts come with a bendable arm for reaching over obstacles, and a telescopic boom lift is used to complete a more remote type of work with a straight, extending arm for maximum reach.

Key Features:

• These are great outreach capabilities,
• They are highly suitable for uneven terrain.

Common Uses:

• In construction works of any type and methods that need to reach up high,
• Window cleaning on high-rise buildings,
• Sign installation in stores, shops, and other commercial businesses,
• Large tree trimming,
• Inspecting roofs and bridges.

3. Vertical Lifts

The vertical lifts are also known as mast lifts. These rise vertically on a mast, offering a straight-up access solution. The vertical personnel lifts often ensure that even if the space is limited, the elevated platform can be used to work efficiently.

Subtypes: As the vertical lifts work on a single function: moving up and down on a beam that works as a guide, there are not many subtypes for these.

But these can be separated into types depending on what type of power is used to move the platform vertically. There are two main types: electric and gasoline-powered models.

Key Features:

• Compact size,
• Ideal for tight spaces,
• The electric models are very popular for operating quietly.

Common Uses:

• Stocking shelves,
• Reaching overhang fixtures- indoors and outdoors,
• Maintenance in confined spaces,
• Access for electrical work in buildings.

4. Towable Boom Lifts

This type of boom lift is much smaller and is often trailer-mounted. These boom lifts are towed behind a vehicle for easy transportation.

Subtypes: While towable boom lifts generally focus on a simpler design for ease of use and transport, there can be some variation: Gas or electric-powered.

Similar to scissor lifts, towable boom lifts can come in gas-powered models for extended use or electric options for quieter, emission-free operation in warehouses or event spaces.

Key Features:

1. Compact and Lightweight: Compared to larger boom lifts, the towable version prioritizes a smaller footprint and lighter weight. This allows for easier towing behind a truck or van and maneuvering in tight workspaces.
2. Telescopic Boom: The primary lifting mechanism is typically a telescopic boom that extends horizontally, offering a good range of outreach.
3. Simpler Controls: Often designed for ease of use, towable boom lifts may have less complex control systems compared to their larger counterparts.
4. Hydraulic Outriggers: For stability during operation, towable boom lifts deploy hydraulic outriggers that extend outward and level the platform.

Common Uses: Due to their portability and affordability, towable boom lifts find applications in various scenarios:

• Tree Trimming: The compact size and maneuverability make them ideal for navigating landscapes and reaching branches on smaller trees.
• Construction Sites: For temporary access needs on construction projects, towable boom lifts offer a quick and convenient solution for tasks like electrical work or inspections.
• Event Setups: From hanging banners to installing lighting equipment, towable boom lifts provide a safe and efficient way to reach elevated points at event venues.
• Maintenance Tasks: Facility maintenance often requires reaching high points for repairs or cleaning. Towable boom lifts offer a flexible solution for these needs.

How to Choose the Right Aerial Work Platform

Choosing the right aerial work platform for your project depends on several factors:

• Height and Reach: Consider the required working height and the horizontal outreach needed to access the work area.
• Indoor vs. Outdoor Use: Electric models are quieter and emission-free, making them suitable for indoor environments.
• Terrain: Rough-terrain scissor lifts are designed for uneven surfaces, while some boom lifts offer excellent ground clearance for off-road applications.
• Load Capacity: The platform’s weight capacity needs to accommodate workers, tools, and materials.
• Mobility Requirements: Self-propelled AWPs offer greater maneuverability on the job site.

Safety Considerations for Using AWPs

Safety is paramount when working with AWPs. Here are some key considerations:

• Follow the manufacturer’s instructions and weight limits.
• Use fall protection equipment like harnesses and lanyards.
• Be aware of overhead obstacles and power lines.
• Operate the AWP on a level and stable surface.
• Never exceed the platform’s rated capacity.

Innovations and Trends in AWP Design and Functionality

The AWP industry is constantly evolving, with advancements in technology leading to the following:

1. Electric and Hybrid Models: These offer cleaner operation and reduced noise pollution, making them ideal for indoor and environmentally sensitive areas.
2. Enhanced Safety Features: AWPs are now equipped with overload warning systems, automatic level sensors, and improved operator controls for enhanced safety.
3. Automation: Future advancements might involve semi-autonomous and remote-controlled AWPs for hazardous environments or hard-to-reach locations.

FAQs

1. Do I need a special license to operate an AWP?

In most cases, yes. Training and certification are required for specific AWP types.

2. Can I rent an AWP instead of buying one?

Absolutely! Rental companies offer a variety of AWPs for short-term projects.

3. What happens if the AWP breaks down while I’m working at height?

Modern AWPs have built-in safety features like emergency lowering systems to ensure operator safety.

Conclusion

The aerial lifts have made the job so much easier by saving type and adding convenience to the job. Whichever aerial kind of platform you choose will be able to get the job done.

But for some added tips, you must always prioritize safety. Ensure operators are properly trained and certified for the specific AWP type. Conduct a thorough pre-operation inspection before use. If you are aware and careful, these platforms can be a great addition to your business.

Learn Everything About the Newest Aerial Work Platforms!

Even after reading this guide, you may have some questions about buying an aerial platform to elevate your own business functions on the job site. Everstar is the best place to go with your inquiries. Be sure to contact us now to learn more about the uses and advantages of different types of aerial lifts and what would be the best choice for you.

Yet, behind their seemingly simple design lies a complex wealth of functionality and adaptability. It can be a challenge to recognize the full capabilities of the backhoe loader.

In this complete guide, we take a look at the critical components of a backhoe loader, its versatility, and its value compared to other construction tools.

What is a Backhoe Loader?

Backhoe loaders (commonly called Tractor Loader Backhoes)are heavy-duty construction equipment built on a tractor-like base. An excavator shovel (loader) is mounted to the front of the vehicle, and a digging bucket (backhoe) is mounted at the rear.

The compact but powerful backhoe loader excels at landscaping jobs, such as digging up trees and moving large rocks, boulders, and gravel.

Backhoe loaders and excavators share many similarities. Both machines have landscape digging capabilities and come with an articulated arm with a bucket at the end. The key differentiator here is that backhoes are smaller in size and have a loader bucket at the front.

Key Components of a Backhoe Loader

Any general all-purpose construction equipment must be able to perform several tasks efficiently and effectively. The three key components of a backhoe loader have solidified its position as the jack of all trades in the construction industry.

The following are the three main components of backhoe loaders.

1. Tractors
2. Loaders
3. Backhoes

1. The Tractor Section

The tractor base of backhoe loaders shares the same chassis as a regular farm tractor, with two big tires at the rear and two small ones at the front.

It also has an elevated seat and steering wheel. The driver’s seat is protected by a robust cabin with thick windows that keep rocks and other debris away.

2. The Loader Section

The loader bucket is attached to an articulating boom arm mounted on the tractor hood. It is commonly used to move heavy objects around the construction site.

While the loader bucket can be used to remove ground material capabilities, its small size limits the digging depth.

A better use for the loader is to fill in large holes by pushing loose dirt and smoothing the top.

3. The Backhoe Section

Finally, we have our primary tool, the backhoe. It is mounted to the rear of the tractor with a three-joint boom arm.

A joint at the tractor base, another at the bucket, and a third in the middle. Some models of the backhoe loader also have an extendable arm for additional coverage.

It is the most versatile component of the machine, capable of digging up hard ground, compacting soft soil, and lifting heavy loads.

4. The Optional Outriggers (Stabilizer Legs)

The backhoe is already one of the most capable heavy machinery available on the market. With additional backhoe attachments, its versatility is further increased. One such attachment is a pair of stabilizer legs.

Stabilizer legs are hydraulic-driven support beams that anchor the tractor to the ground, keeping the tires from slipping. Stabilizers are also often used for additional leverage when picking up or moving heavy equipment.

We discuss the various types of backhoe attachments later in this article.

Applications of Backhoe Loaders

Backhoes are versatile machines that can be deployed on a number of tasks on the construction site. Here are just some of its uses.

• Agriculture: Excellent at digging trenches, clearing cropland after crop harvest, planting trees, tilling the soil, etc.

• Construction: Covers all types of site work, including excavating ground, digging trenches for building foundations, moving heavy materials, etc.
• Demolition: Generally used for cleanup work at demolition sites, such as breaking large rocks and debris, moving waste and rubble, etc.
• Landscaping: Mostly involves simple ground work such as leveling, digging, and clearing.
• Mining: Backhoes are used for material excavation from tight spots and transferring them to larger dump trucks.
• Road Work: Backhoes can be used for all types of road work and maintenance, such as filling in potholes, snow removal, and road repairs.

Every Type of Backhoe Loader Attachment

Backhoe loaders come with several handy tools that can be equipped at the tip of the backhoe for additional functionality.

Here is a brief breakdown of every backhoe attachment.

1. Bucket

The bucket is a standard attachment used for digging, lifting and loading materials. Bucket attachments come in various sizes and configurations for different tasks.

2. Auger

An auger is a drill-like spiral tool designed for drilling holes in the ground. It is commonly used for tasks like planting trees, installing fence posts or creating foundations.

3. Broom

A broom is a large horizontal tool that has bristles at the end. It is used for sweeping and cleaning surfaces, such as roads, pavements, or parking lots. The most common broom design has a cylindrical shape and spins for better sweeping performance.

4. Coupler

A coupler is a tool holder that allows the operator to quickly and easily swap between attachments from the comfort of their cabin without needing to manually disconnect and reconnect hydraulic hoses.

5. Grapple

Grapples are teeth-like clamp attachments that are used for grabbing and lifting bulky or irregularly shaped objects, such as logs, rocks, or debris.

6. Hammer

The hammer attachment is a hydraulic jackhammer that is used for breaking up asphalt and hard rocks. The controlling hydraulic system determines its power output.

7. Pallet Fork

Pallet fork attachments give your backhoe temporary forklift functionality. They are used for lifting and moving heavy materials, such as bags of cement, stacks of lumber, or crates.

8. Rake

A rake attachment is a large set of metal spikes that are installed close to ground level. It is useful for agricultural work such as leveling and smoothing uneven surfaces, preparing soil for planting, or clearing debris.

9. Ripper

The ripper attachment is one of the most odd-looking tools. It looks like a large shark tooth or a hawk talon and is used for breaking up compacted soil, rock, or pavement. Despite its odd shape, the ripper can prove very useful at a job site.

10. Snowplow

A snow plow attachment has a large rectangular profile with a concave interior. As the backhoe loader moves through the streets, the plow scrapes up the heavy snow and pushes it to the sides. Although it is less useful at construction sites, its functionality in those snowy winters makes it a great investment.

The plow attachment is one of the best tools for snow removal.

11. Thumb

A thumb attachment looks like a dinosaur head with big, sturdy jaws. It’s called a thumb because it enables the backhoe loader to perform more complex tasks. Thumb attachments have excellent lifting capacity and transform your backhoe loader into a mini excavator.

It is more versatile than a bucket attachment but has a much lower internal volume.

Choosing the Right Backhoe Loader

Job sites are often full of challenges, be it rough terrain, bad weather, or a remote location. A good backhoe loader should overcome most, if not all, of these challenges.

Here are five key factors to consider when buying a backhoe.

1. Lifting Capacity

Take a thorough look at the backhoe specs and find out the machine’s maximum lift capacity and the amount of weight that can be carried in the backhoe bucket. You should also know the load-bearing capabilities of the loader arm.

Ensure it can handle the materials and loads typical of your job sites. Consider factors such as the weight of the materials, the height to which they need to be lifted, and any safety regulations regarding lifting capacities.

2. Attachment Options

Look for manufacturers that also offer a variety of attachment options for your backhoe loader. These attachments can be quite expensive. Be sure to thoroughly examine your workload before investing.

Between the backhoe and loader bucket, your machine can cover most of the workload. For many businesses, the investment in backhoe attachments is simply not worth the price.

3. Machine Size

The size of the backhoe tractor is another big factor. Larger models have better lift capacity and have more digging power. However, if your construction site is based in an urban area, the maneuverability of a smaller, more compact machine should be prioritized.

4. Shipping Costs

Additional costs are always associated with buying heavy equipment. Packing and shipping costs should also be taken into account when finalizing your budget. Overseas shipment, in particular, can be quite expensive.

5. New vs. Used Backhoe

Buying a used backhoe loader is always an option for those up-and-coming businesses. Used models have a fraction of the price of a new backhoe. Like with any used equipment you are trading cost benefit for quality.

Used backhoe loaders might be at the end of their life span and require heavy maintenance before being fully operational. Heavy equipment, like a backhoe, can see over ten years of use before a business decides to upgrade and sell the old one.

Always be careful when getting used equipment, and if possible, try to stick to new machines from reputable sellers.

Backhoe Loader vs. Excavator

Excavators and backhoe loaders share the same working principle, as both machines are adept at digging.

However, when we look at the details, we see that an application-specific machine like an excavator is very different from a backhoe loader.

1. Machine Size

Excavators are generally larger than backhoe loaders and offer more lifting capacity, better-digging depth, and scale from small to large projects.

Contrarily, backhoes are smaller, making it easier for them to maneuver around tight spaces and transport the tractor from one job site to another.

2. Flexibility and Versatility

Large-scale excavation projects prioritize work efficiency (digging capacity) over cost efficiency. Thus, a large, heavy-duty excavator with specialized attachments will always outperform a backhoe loader.

However, if we look at long-term viability, the backhoe loader can accomplish more tasks but at a slower pace.

3. Degree of Freedom

The degree of freedom (DOF) refers to the mobility of a mechanical system. Backhoe loaders have 4-DOF, correlating to the four joints in the boom arm. Meanwhile, Excavators have 5-DOF. They also have four joints in the hydraulic arm, and the entire system sits on top of a rotating platform.

Unlike a backhoe machine, an excavator with stabilizers deployed can still rotate 360 degrees.

FAQs

1. How Much Does a Backhoe Loader Cost?

An entry-level backhoe loader starts at $25,000, with expensive ones easily reaching upwards of $200,000. Always account for shipping costs when you purchase any heavy machinery.

2. Difference Between Loaders and Backhoes?

The backhoe attachment on the rear of a tractor has better range and mobility. Loaders at the front have better lifting capacity.

3. Do Backhoe Loaders Use Hydraulics?

Yes, All backhoe loaders run on a hydraulic system. It results in a higher power output than a mechanical motor and gear system.

Conclusion

Backhoe loaders are a marvel of modern technology and ingenuity. It takes the best parts of modern heavy machines and combines them into a single versatile unit.

The best part about having a backhoe is the flexibility in attachments. A backhoe is a great tool for those small to medium businesses. Very few machines can match the flexibility and versatility of the humble backhoe.

Load Up for Success with Everstar!

Everstar is a titan of the heavy machinery industry. With over a decade of experience manufacturing quality components, we have established ourselves as the go-to brand for all your construction equipment.

Our state-of-the-art backhoe loaders are built to last, complying with all international quality and safety standards, including the ISO9001, CE, and CCC certifications. Everstar offers comprehensive startup and training guidance to all our customers to help them hit the ground running.

Choose a brand that has your best interest at heart. Choose Everstar. Contact Us Now!
