Key Takeaways:
- Telescopic Kelly bars enable efficient deep foundation drilling with an adaptable design.
- Choosing quality materials and the right type ensures durability and performance.
- Regular maintenance and certified products prevent breakdowns and extend service life.
- Standard Kelly bars fit various rigs and applications for reliable, precise foundations.
Kelly bars are essential deep foundation elements used in excavation, widely used in construction projects involving large diameters or deep boreholes. Their telescopic design enables controlled extension and retraction, adapting to varying drilling depths and soil conditions.
For construction professionals, project engineers, and equipment buyers, understanding how a Kelly bar works is essential. This includes its structure, materials, applications, and maintenance, all crucial to selecting the right tool for the job.
This article breaks down the fundamentals of Kelly bars, from their role in torque transmission to the design features that support reliable, high-performance drilling. Everstar delivers durable tools built for challenging environments, helping teams secure stable foundations and stay on schedule.
Kelly Bar Basics: Definition and Purpose
At its core, a Kelly bar is a crucial part of drilling rigs used in construction. Its primary purpose is to transfer rotational torque and downward crowd force from the rig to the drilling tool, enabling efficient pile and borehole drilling.
What Is a Kelly Bar?
A Kelly bar is a telescoping steel tool, often square or hexagonal, designed to extend or retract as drilling depth changes. It connects directly to rotary drilling rigs and drilling equipment, transmitting the necessary torque and force to cut through soil and rock.
Key Role of the Kelly Bar in Construction and Drilling
The Kelly bar acts as the vital connection between the rotary drive tool, drill string, and the drill bit. By transferring torque and vertical force, it allows the drill to penetrate various soil and rock layers effectively, ensuring stable foundations and precise boreholes.
How Does a Kelly Bar Work?
In the construction and drilling industry, the Kelly bar serves as the critical link between the drilling rig and the drill bit. It efficiently transfers both rotational force and downward pressure, enabling deep and precise drilling through various soil and rock layers.
Transmission of Torque and Crowd Force
The Kelly bar transfers rotational torque from the rig’s power unit directly to the drill bit, enabling cutting and soil penetration during drilling boreholes. At the same time, it transmits axial crowd force downward, applying the necessary pressure to push the drill bit through tough materials.
Telescopic Design and Extension During Drilling

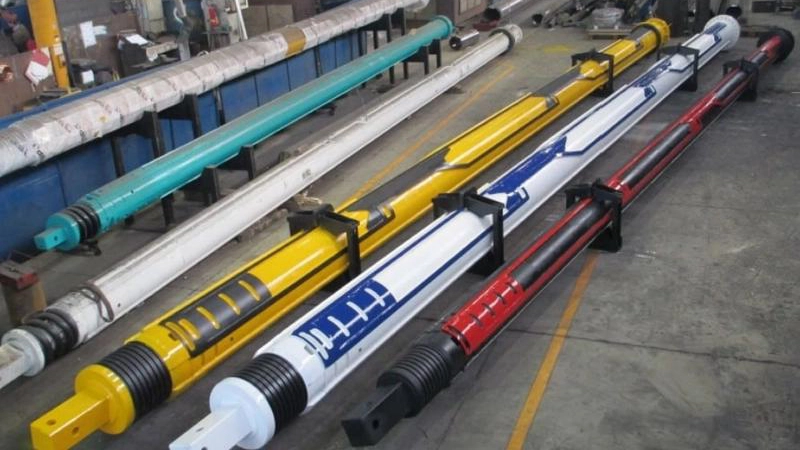

Kelly bars consist of 2 to 6 telescoping inner and outer sections that slide out as drilling progresses. This design allows for adjustable length to reach deeper boreholes while preserving the bar’s structural integrity and ensuring efficient maximum torque transfer throughout the drilling process.
Construction and Design Features of Kelly Bars
Design features are crucial for ensuring durability and performance. Key aspects include material choice, Kelly bar types, and essential accessories that support efficient drilling operations.
Material Selection and Manufacturing
High-strength seamless steel tubes such as 35CrMo and 27SiMn provide durability and wear resistance. Manufacturing processes such as welding, heat treatment, and strict quality control ensure the Kelly bar’s strength and longevity.
Types: Interlocking vs Friction Kelly Bars
Interlocking Kelly bars use welded ribs and mechanical locks to provide greater torque transmission and stability, ideal for harder ground. Friction Kelly bars rely on frictional contact between rails to transmit torque, making them better suited for softer soils and lighter drilling demands.

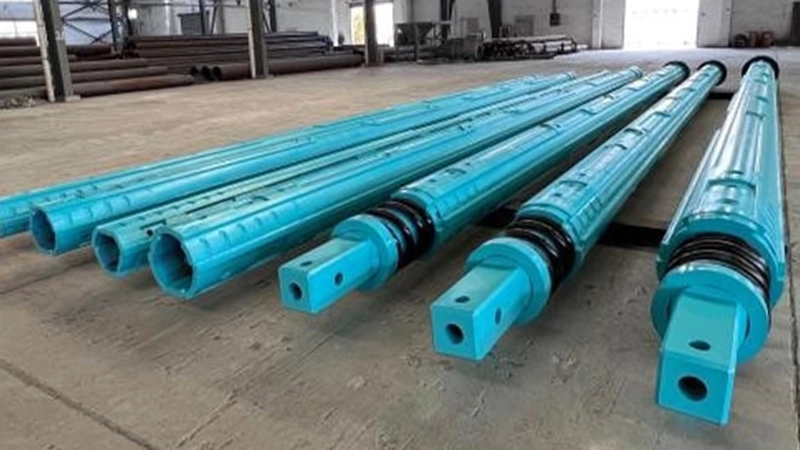

Accessories and Standard Components
Kelly bar accessories support stability, reduce wear, and improve drilling performance. They connect the bar to the rig and tools while minimizing vibration and noise. Typical components include:

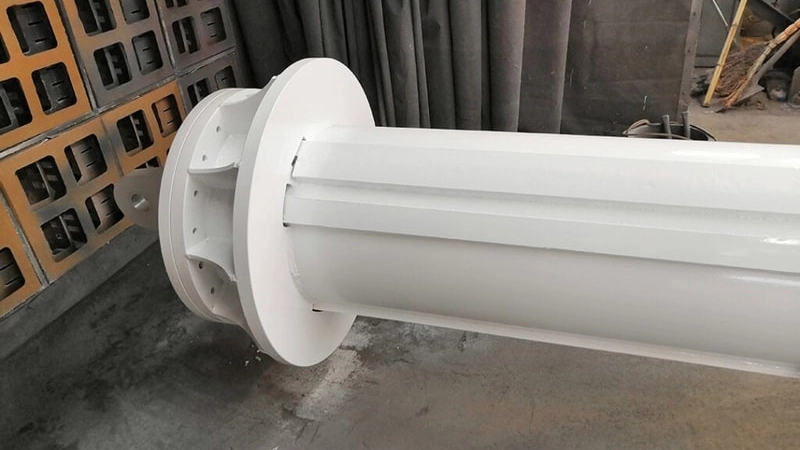

- Top flange (connects to the Kelly swivel)
- Drive pipe
- Shock absorbers (reduce vibration)
- Square Kelly box (for tool attachment)
- Optional damping noise system
Kelly Bar as an Essential Drilling Tool
From operation to compatibility and field applications, understanding how the Kelly bar integrates with drilling rigs is key. Its versatility supports a wide range of foundation projects and performs well in challenging ground conditions.
Compatibility with Various Drilling Rigs and Equipment
Kelly bars are compatible with hydraulic rotary drilling rigs, crawler rigs, and piling machines frequently used on construction sites. They accommodate drilling depths ranging from 10m to 130m and torque capacities between 80kNm and 500kNm, based on soil and pile demands.
Applications in Different Construction Projects
Commonly used for bored piles, drilled shafts, foundation piling, and deep drilling in infrastructure and ground engineering, Kelly bars enable precision and depth across diverse soil conditions.
Maintenance and Quality Considerations for Kelly Bars
Regular maintenance, routine inspections, and choosing certified products with reliable support can significantly extend a Kelly bar’s service life and prevent unexpected breakdowns on-site.
Inspection and Wear Monitoring
Routine checks for cracks, weld condition, key wear, and signs of deformation are essential. These inspections help maintain drilling performance and ensure safe operation.
Importance of Certified Quality and Manufacturer Support
Using Kelly bars with origin and quality certificates, such as those manufactured under ISO 9001 standards, ensures better durability. Partnering with trusted suppliers like Everstar also provides access to replacement parts, technical service, and long-term support when needed.
FAQs
What is the Kelly Tool used for?
The Kelly tool connects the rotary drive of a drilling rig to the drill bit, transferring torque and crowd force. It enables deep drilling by allowing controlled extension, making it essential for pile foundations and borehole drilling in construction projects.
What is a Kelly bar in piling?
In piling, the Kelly bar transmits rotational force and vertical pressure from the drilling rig to the pile drilling tool. It adapts to varying depths through its telescopic design, enabling precise and stable drilling for strong foundation piles.
What material is Kelly bar made of?
Kelly bars are made from high-strength seamless steel alloys such as 35CrMo and 27SiMn. These materials provide durability, wear resistance, and the ability to withstand heavy loads and bending forces during deep foundation drilling operations.
What is the difference between friction and interlocking Kelly bars?
Friction Kelly bars transfer torque through friction between rail contacts, suitable for softer soils. Interlocking Kelly bars use welded drive ribs and a mechanical locking mechanism to provide stronger torque transmission and enhanced robustness, ideal for harder ground and demanding drilling projects.
How deep can you drill with a Kelly bar?
Kelly bars typically support drilling depths from 10 meters up to 130 meters. Their telescopic sections extend as drilling progresses, allowing deep boreholes for various construction applications while maintaining strength and torque transmission.
Conclusion – Kelly Bars Matter for Drilling Success
Kelly bars are indispensable in construction operations. If you want reliable results, selecting quality equipment is essential. These precision-engineered tools combine telescopic design, high-strength materials, and advanced locking mechanisms to support efficient and durable foundation drilling for your projects.
Get the Right Kelly Bar for Your Next Project
Contact Everstar Machinery experts to discover durable, high-performance Kelly bars tailored to your drilling needs. Explore Everstar‘s complete product catalog to find the perfect equipment for your foundation projects.
