At the modern construction site, the advanced technology supports piling operations, such as the remote control, GPS system, hydraulic system and others. Through years of reach and development, EVERSTAR have employed the innovative technology on the solar pile driver machines to meet different requirements on diverse job sites.
Key Takeaways
- Advanced technology supports more accurate and efficient pile driving, reducing project delays and lowering labor costs.
- To address different soil conditions and working environments, EVERSTAR can provide a variety of attachments, hammer types, and engine configurations to help customers deal with project challenges.
- Providing core performance data for pile drivers allows customers to better understand their strengths and capabilities, making it easier to choose the most suitable machine for different application needs and piling requirements.
GPS Precision Control and Deep Pile Foundations Placement
In terms of the modern infrastructural construction, the solid pile foundations are essential for the sustainable development projects.
Employed with the advanced GPS system, the high-efficiency pile driving machine surpass the traditional one in performance on the construction site. Whether driving pipe piles into uneven terrain or piling solid steel piles through complex layers, the operator can raise and align the pile head automatically to keep the digital schematic.
As a heavy duty tool, this intergrated driving system monitors real time subsurface resistance, ensuring that whether using a hydraulic impact hammr or a vibratory hammer, the installation reaches the exact required depth.
This level of precision helps prevent displacement of the finished structure, providing a solid foundation for buildings, heavy highway bridges, and other structures.
Mast Stroke Capabilities and Variable Soil Layer Penetration
A versatile pile driver with flexible changeable attachments of the machine can overcome variable subsurface confitions.
The HXR5 series tracked pile driver features a generous 5800mm mast stroke and 6200mm maximum pilling height, allowing it to provide substanitial slender support structures with minimal repositionting overhead.
During the machine piling process, the dynamic stroke stroke length allows the hammer to deliver high-velocity blows from vibratory pile drivers to overcome friction.
Hydraulic impact hammer——drive piles
If the soil conditions within solid rock, the DTH drilling will break the rocky surface and create the hole for the whole construction site.
When maximum raw breaking power is necessary for dense rock, switching back to a high energy hydraulic impact hammer, which is powered by heavy-duty hydraulic lines rather than external compressed air, delivering up to 900J/1260J/1960J of variable impact energy. This versatility allows crews to successfully navigate high penetration resistance, completing complex pile driving tasks across any challenging landscape.
Multidirectional Sliding Adjustment and Multi-Angle Framework Stability
To respond to different piling condition, the special design of the pile driver supports the machine perform well on the construction site.

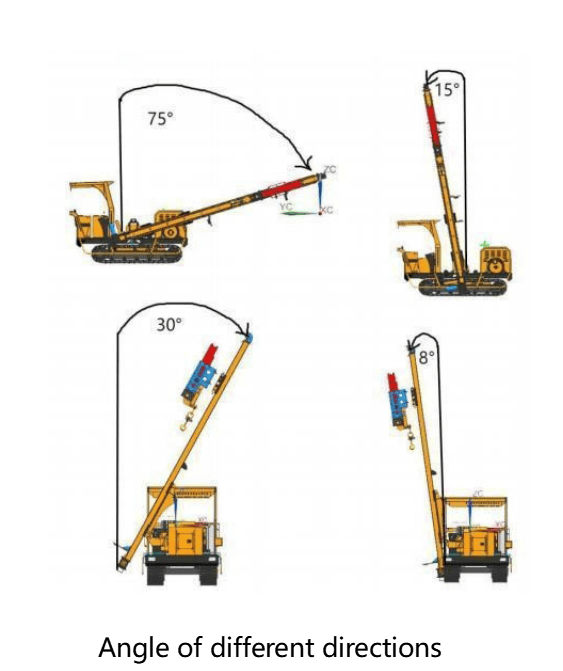

The HXR5 series supports a left/right sliding stroke up to 500mm, alongside a front/rear frame adjustment angle of forwards 75° and backwards 8°, combined with a maximum guide rail inclination angle of Left 30° / Right 8°. Similarly, the HXR3 mini drilling all-in-one machine features a ±12° frame front/rear adjustment angle and a 30-96° guide rail tilt angle.
Achieving plumbing perfection on uneven ground requires comprehensive framework articulacy. Advanced pile driving rigs feature robust multi-axis sliding guide frames to optimize the alignment of timber piles or hollow pipe elements before they drive piles into the ground.
When the large machine need to build piers or load-bearing panels, operators need to take advantage of flexibility to compensate for slope gradients. This adaptive layout reduces the tilting effects of unilateral loading, ensuring that when the heavy weight is engaged in dropping or driving, the downward force vector stays parallel to the pile axis, maximizing penetration efficiency while mitigating structural wear on the equipment.
Extreme Complex Terrain Adaptability and Alternative Driving Mechanics
Operating on rugged terrains demands high mobility tracked chasis with versatitle energy configurations. The HXR6 series crawler pile driver boasts a 15° climbing ability. The engine options include the powerful Cummins engine(97KW) or Yammar engine(53.7KW), which can meet Euro 5 Emission requirements. A 180L fuel tank capacity will sustain extended operations far from service hubs. To comply with urban environmental laws, modern projects often specify systems that produce less noise.
Unlike a traditional diesel impact hammer or older steam-driven models where acoustic emission is the dominant noise on site, modern vibratory pile drivers utilize fluid driven eccentrics to sink structural wood or filled metal cylinders using harmonic energy rather than pure gravity-driven impact.
The inclusion of a robust hammer cushion ensures that intense repetitive loading does not deform the structural integrity of the steel or crack dense concrete elements, allowing the piles to pass smoothly through shifting soil layers to establish high capacity supported structures.
FAQs——Why choose GPS Solar Pile Driver
What does GPS mean to drive a pile?
The GPS system allows a pile driver to precisely locate its exact target coordinates without manual surveying. The machine can then adapt its driving force to the specific soil resistance, ensuring every single pile is perfectly plumb and securely anchored, no matter how difficult the landscape. The GPS automation allows the operator to drive piles continuously with automated alignment, reducing manual surveying time by up to 80%
What does a pile driver do on the job site?
When the solar pile driver equipped with the GPS system, the machine performs well on piling speed, efficiency to reduce the time waste on the job site.
All solar pile drivers from EVERSTAR can be equipped with the GPS system according to the requirements from consumers. Technical staff in EVERSTAR receive customized service, like color of the machine, power engine, drill rod cap and other specific requirements about the machine. Never worry about the service quality from EVERSTAR.
Contact EVERSTAR for GPS Solar Pile Driver for Construction Project
With the help of advanced technology, pile driving efficiency and accuracy have both been improved. Just contact EVERSTAR with your needs, the professional team in EVERSTAR will offer the the most economical purchasing plan.
