Key Takeaways
- One pile driver machine covers different types of pile driving methods: pile ramming, screw driving, auger drilling, and DTH impact drilling.
- Drives 3–6m piles on flat terrain, suited for a range of applications including solar farms, bridges, guardrails, fencing, and small construction.
- Installs 200–400 piles per day under optimal ground conditions.
- Powered by Cummins or Yanmar engines for reliable hydraulic output throughout the workday.
- Operator training is included with every EVERSTAR machine purchase.

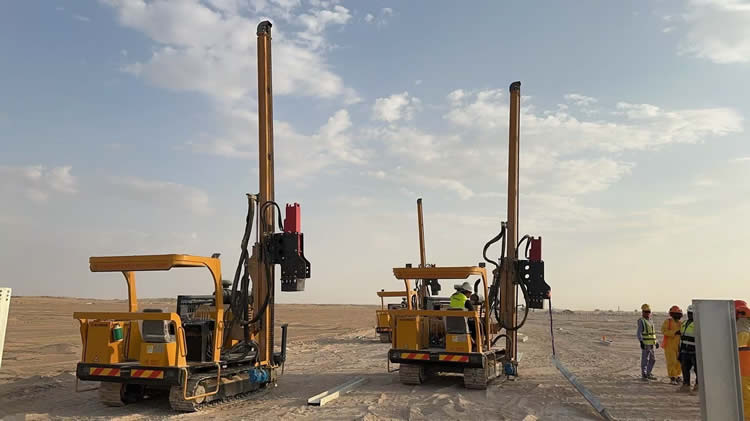

On a mid-scale solar farm installation, ground conditions rarely stay consistent across the full site. One section may allow direct pile ramming; another may demand auger drilling or DTH impact drilling to reach stable soil.
Bringing in separate equipment for each method incurs time, logistical costs, and budgetary impacts. EVERSTAR’s pile driver machines remove that problem: one machine covers all four installation methods without requiring additional mobilization.
Designed for land-based, flat-terrain projects driving piles to 3–6m, the HXR and HX series are used for solar farm construction, road guardrail installation, fencing, and small construction projects.
There are also other types of pile driving equipment available to suit different project requirements. This article covers how the attachment system works in practice, what the engine and hydraulic setup sustains over a full workday, and what it actually takes to reach 200–400 installed piles per day.
One Machine, Multiple Methods: The Case for Multifunctional Pile Drivers
EVERSTAR’s pile driver machines operate across four methods:
- Pile ramming delivers fast driving on cohesive soil by using a heavy ram to impact the pile’s surface and drive it into the ground.
- Screw driving handles loose or sandy ground where impact-driven piles lose purchase.
- Auger drilling pre-bores holes on sites where direct driving would cause pile deflection.
- DTH impact drilling uses compressed air to break through hard rock, compacted surfaces and rock layers. Impact hammers, vibratory pile drivers, and press-in machines are common mechanisms for driving piles into the ground.
This versatility allows adaptation to various surface conditions without the need for additional equipment or delays.
These machines operate on flat ground only and are sized for 3–6m pile foundations. Vibratory pile drivers, which use counter-rotating eccentric weights to create vibration, are ideal for soft soils and noise-sensitive areas due to their low vibration and noise levels, and can also be used for pile extraction.
Vibratory hammers installed on excavators reduce upfront costs but deliver lower precision during pile driving. Hydraulic hammers offer precise control, lower noise levels, and are more environmentally friendly compared to diesel and air hammers.
Soft soils favor the use of vibratory hammers, while rocky soils require hydraulic impact or drilling methods. EVERSTAR’s compact pile drivers are purpose-built for projects where precision, weight, pile length, cycle time, and daily throughput matter more than raw scale, making them ideal for constructing piers, bridges, and other structures using timber piles, steel piles, or tubular steel piles.
Monitoring penetration rate and blow counts during operation ensures the pile reaches the required depth and stability.
Attachment Swap Protocols for 200+ Pile Days
Reaching 200 piles per day requires minimizing time between installations, and that includes keeping attachment transitions fast. Specialized tools make attachment swaps easy and efficient, even in areas with limited access.
The hydraulic pile hammer (max height 6,000mm), auger drill (max depth 4,000mm), and DTH drill hammer all use a standardized mount designed for field swaps. Minimizing cycle time is crucial for productivity, robotic pile drivers can operate up to five times faster than traditional methods, significantly reducing cycle times and increasing output.
Pre-stage attachments alongside the working zone, assign one crew member to manage transitions, and ensure your team is well-coordinated to maintain smooth workflow. Sequencing pile rows to avoid unnecessary method-switching mid-section further streamlines operations.
The use of autonomous pile driving systems can also improve safety by reducing human exposure to hazardous conditions. EVERSTAR’s operator training covers these workflow practices directly.
Engine and Hydraulic Performance as the Foundation of Uptime
Piling efficiency of 2,500–3,200mm per minute depends on hydraulic pressure staying consistent across the full shift, such as soil conditions and project requirements.
The hydraulic system, which can be equipped with hydraulic hammers for precise and efficient pile driving, is sized to support all four attachment types without output drop-off during extended operation.
EVERSTAR’s pile driver machines run on Cummins or Yanmar engines, both proven in continuous-use construction equipment for sustained output and reliable service availability.
Performance may vary depending on site-specific conditions, but the system is designed to meet the demands of modern construction projects. Consistent pressure also maintains pile placement precision, reducing the rework risk that misaligned piles create on solar arrays and guardrail installations.
EVERSTAR Pile Driver Machines: Range, Depth, and Daily Output
The HXR5, HXR6, and HXR7 models are available in different sizes to accommodate various project requirements, with the importance of selecting the right pile length for each application emphasized in their specifications.
Guardrail-specific models, including the HX26D and HX36D, also come in multiple sizes to match specific needs. The maximum pile driving height is 6,000mm across the range (5,000mm standard), and the supported pile driving should be matched to the equipment’s operational limits for effective installation.
Pile depth capacity of 3–6m covers the pile foundations required by solar farm projects, road guardrails, fencing systems, and small personal or one-story structures. Cranes are often used alongside pile driver machines to lift and position piles or heavy components during installation, ensuring efficient workflow.
Daily output of 200–300 piles under optimal conditions makes project scheduling predictable. A 1,000-pile photovoltaic installation can be planned across a defined number of machine-days rather than left open-ended.
Model selection within the range comes down to required driving height, anticipated soil conditions, supported pile length, and whether pile pulling capability is needed for the specific project.
What 300-Pile Days Actually Require: Setup, Crew, and Ground Conditions
Peak output depends on three factors. First, ground conditions: soft to medium cohesive soil allows the fastest pile ramming, while harder or rockier terrain requires DTH methods that reduce pace.
Output varies depending on soil conditions and other factors, such as equipment type and operator experience. Certain methods are commonly used for specific soil types. For example, hydraulic hammers are commonly chosen for dense or rocky soils, while sand rammers are commonly used in foundries and lighter construction.
Sites with gradients require leveling work or assignment of slope sections to handheld pile driver equipment. Third, operator readiness: Trained operators who know the attachment system and site layout consistently reach higher daily counts. The training provided at purchase directly supports this.
FAQs – Pile driving equipment
Which attachments are compatible with EVERSTAR pile driver machines?
EVERSTAR pile driver machines are compatible with the hydraulic pile hammer, auger drill, DTH drill hammer, and pile puller for O-type, H-type, and C-type piles. Different types of attachments and elements, such as specialized pile caps or structural components, may also be available for unique or specialized applications.
Which project types are best suited to EVERSTAR pile driver machines?
EVERSTAR pile driver machines are best suited to applications such as large-scale solar farm construction, road guardrail and fencing installation, and small construction projects like personal or one-story self-built structures.
Find the Right Pile Driver Machine for Your Project
EVERSTAR Machinery’s team is available to provide information and service to help you select the right pile driver machine for your needs.
Contact EVERSTAR Machinery’s specialists to identify the right model, attachment configuration, and output expectations for their specific site.
