Normally, the pile drivers are used to drive pile to the ground, but there exist other functions for pile drivers in application. DTH drilling enables efficient drilling in hard ground conditions. Auger drilling is used in medium-soft soil condition. The screws driving directly screws the pile into the ground.
Key Takeaways
- Many factors influence the choice of pile drivers, more details in this article will demostrate to help you make a wise decision.
- Hydraulic hammers are essential part of the machines, the installation process depends on its impact power. An appropriate hammer will promote the efficiency of the piling program.
- Optional drill bits expand the functions of the pile driving progress. Considered that the time limited in program, the multi-functions are the strong ability overcome the changes in piling.
Fast pile driving for solar foundations

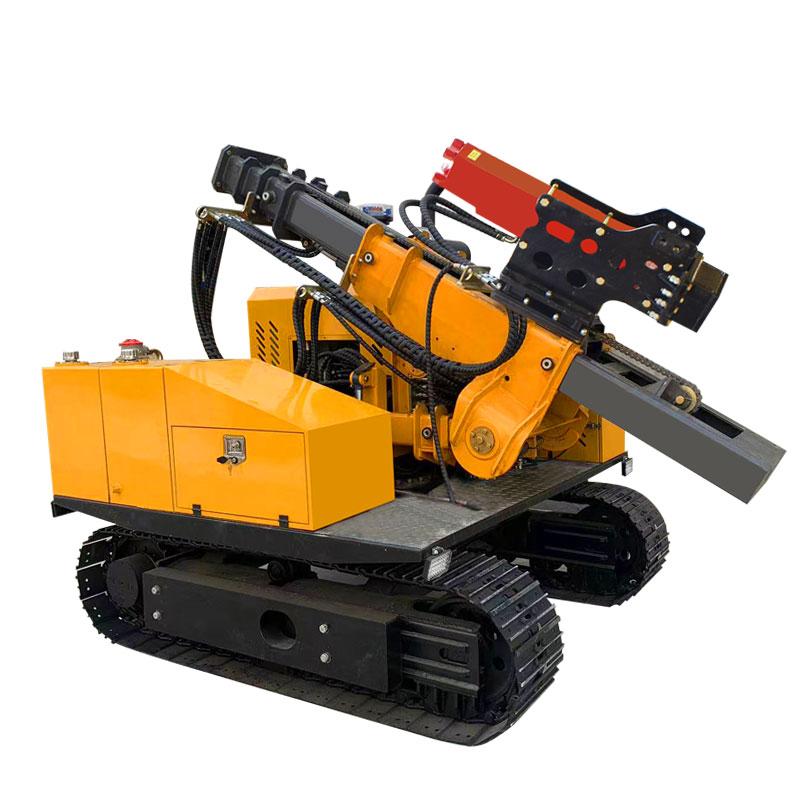

The usage of EVERSTAR solar pile drivers promotes the efficiency and speed of pile driving into the ground. Time in construction sites is important for EPCs in process.
Our high-efficiency system delivers rapid installation with minimal site disruption, utilizing advanced technology to ensure safety operation and significantly reduced vibration for a seamless project workflow.
Why solar installers choose these pile drivers?
In the realm of renewable energy construction, the solar pile driver hasused as an essential piece of heavy equipment. Its primary purpose is to drive piles deep into the ground to create a stable foundation for massive solar arrays. Unlike traditional pile driving methods that might rely on diesel power alone, modern systems often utilize a hydraulic hammer to achieve the necessary depth with precision. These pile drivers are designed to handle various materials, ensuring the structural integrity of the supported structures even in challenging soil conditions.
How solar pile driving works on site?
Understanding the functions of pile driver technology requires attention on how they interact with the earth. Vibratory pile drivers and vibratory hammers use counter rotating eccentric weights to generate vertical vibrations. This process temporarily reduces friction in the soil, allowing steel or concrete piles to sink under their own weight. For projects located in sensitive areas, contractors prefer equipment that offers minimal vibration and lower noise levels to avoid damaging other structures like bridges or docks.
Energy source selection
Usually three types of energy are offered for machines application: diesel vs hydraulic vs electric.
Diesel energy: One of the advantages of using diesel energy is stable in complex environment condition. Compared with lithium battery systems, which are sensitive to temperature, diesel engines deliver more stable performance in both extremely cold conditions and high-temperature environments.
Hydraulic energy: Hydraulic drive systems are commonly adopted in large-scale construction equipment. OSHA industrial safety guidelines highlight the widespread use of hydraulic systems across construction and manufacturing industries.
Eectric energy: The usage of electric power is non-emission compared with above two choices. Electric power usage can reduce noise levels by 30%–70% in some terms, minimizing the impact on surrounding residents.
Traditional diesel-powered pile drivers are powerful but generate noise and exhaust emissions. In contrast, electric models significantly reduce these hazards, aligning better with recommendations from the OSHA for safer construction site conditions.
Technical specifications and included items
Four types of hydraulic hammers are offered in EVERSTAR equipped with pile equipments to provide impact power in pile driving. Clients can choose their ideal hammer according to the hammer capacity.
| Models | M1 | M2 | M3 | M4 |
|---|---|---|---|---|
| Weight(kg) | 345 | 493 | 493 | 736 |
| Impact frequency(bpm) | 800 | 600 | 800 | 400 |
| Impact energy(J) | 900 | 1260 | 900 | 1960 |
How to select appropriate solar pile drivers?
Selecting right pile drivers in the construction projects is a crucial step in piling process. The soild foundation is basic for construction sites, which is the core principle for many cases in building projects.
Manufacturer Evaluation
One of the permissions about pile drivers is years experience and capacity of the manufacturer. The manufacturer equipped with strong R&D capabilities is prioritized among clients. Several testers in factory serve for machines inspection, including torque tester, hydraulic tester and other testers in applying.
Solar pile drivers in construction projects
According to testing in the actual construction sites, 200-400 piles piling into the ground display the capacity of machines in average.
Functions or drill bits of pile drivers
Pile driving is one of the function of the pile drivers. The other types of function of pile drivers mentioned at first in this article.
DTH Drilling
It is the preferred solution for drilling holes in hard rock, such as granite, basalt, and limestone.
DTH drilling works by driving the hammer directly to the bottom of the hole, where a piston repeatedly strikes the drill bit using compressed air.
Auger Drilling
The auger drill bit uses cutting teeth at the bottom to rotate and cut through the ground formation. In medium soft soil conditions, auger drilling performs extremely high efficiency. It works like a screw being driven into wood, quickly forming pile holes in the ground that meet the required design diameter.

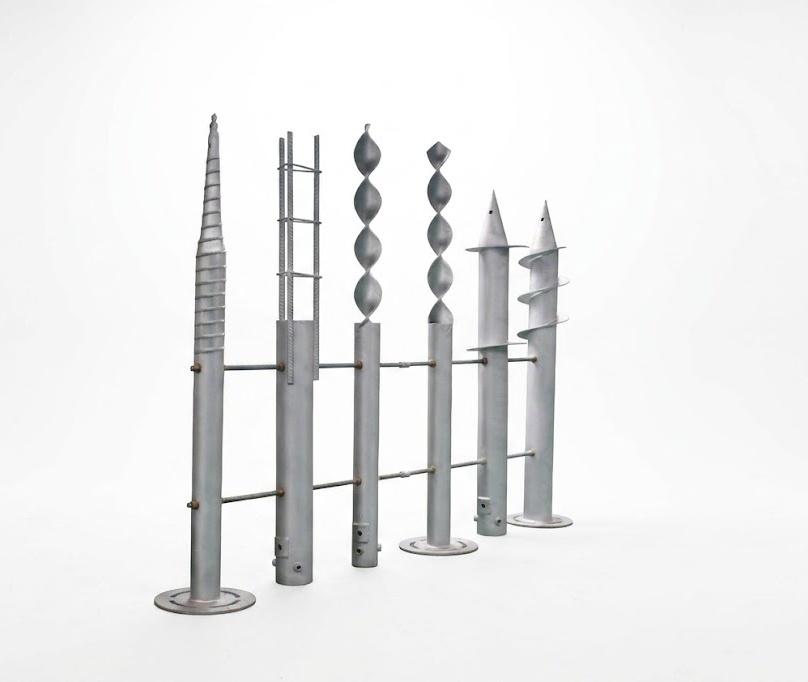

Screws Driving
Screws driving is a special piling action among other functions about the piling machines. The pile driver provides high torque through a power head, directly piling ground screw into the ground.
It is highly suitable for use in ecological protection areas, or temporary constructions. After completion, the ground screws can even be unscrewed and recovered, allowing the land to be quickly restored to its original condition.
Pile foundations suited to solar arrays
Steel H-Piles: These are among the most common piles used in large-scale solar farms.
- Characteristics: They are driven deep into the ground using a hydraulic hammer.
- Advantages: Excellent at penetrating dense soil conditions and providing high structural integrity for supported structures.
Timber Piles: Though less common in modern projects, they are still used for smaller construction or specific ecological requirements.
- Characteristics: Made of treated wood materials.
- Advantages: Cost-effective for light structures like docks or small off-grid arrays in soft ground.
Sheet Piles: Occasionally used in solar projects involving significant terrain management or water-side constructions like bridges.
- Characteristics: Interlocking steel sections.
- Advantages: Excellent for soil retention and creating a stable perimeter for foundation work.

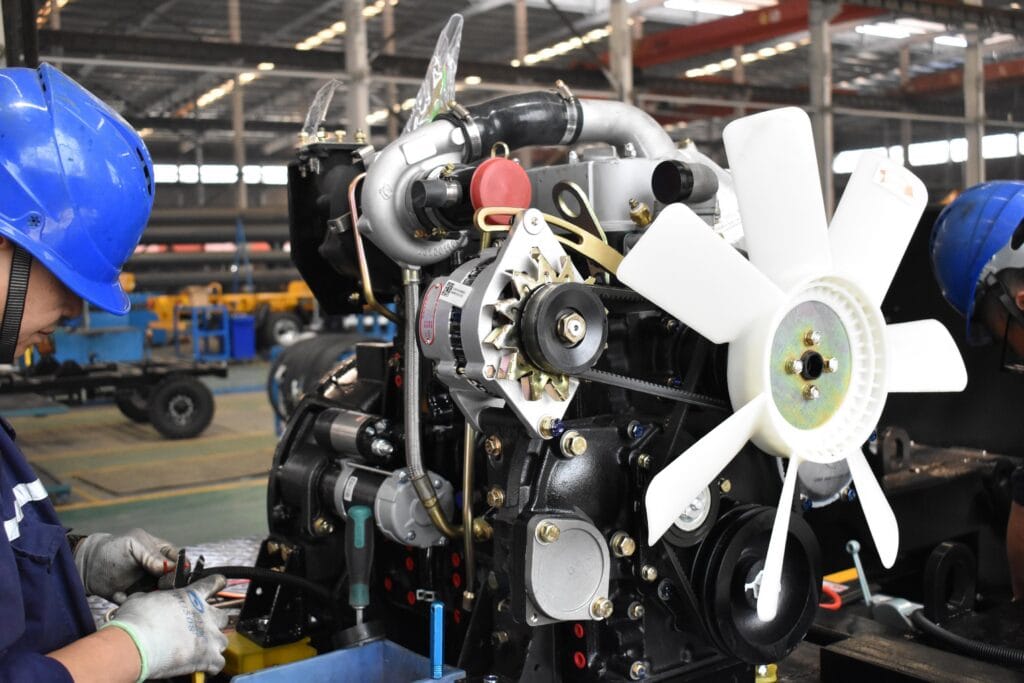

Operation, maintenance, and safety for pile drivers
Successful operations depend heavily on the skills of the workers and rigorous pre operational checks. When a piston compresses air or fluid within the cylinder , it drives the impact block to provide the force needed to penetrate rock or dense clay.
By choosing the right hydraulic or diesel hammer, a construction team can significantly increase the speed of installation. Ultimately, the high performance and load capacity of these pile foundations provide a reliable solution for long-term industrial solar projects.
Pile drivers typically operate in complex environments like high dust levels, heavy loads, and high-frequency vibrations. Daily maintenance is one of the methods for machines using in long terms.
FAQs——solar pile drivers
What is the primary function of a solar pile driver in construction?
The primary function of a solar pile machine is to drive piles into the ground to create a stable foundation for solar panels. This heavy equipment ensures that the supported structures maintain their structural integrity across various soil conditions and environmental stresses.
What materials are typically used for piles in solar projects?
Installation teams typically use materials such as steel H-piles, round pipe piles, or pre-cast concrete depending on the project’s load capacity requirements. In some specialized industrial applications or soft soil, timber piles or sheet piles may also be utilized
Contact EVERSTAR for Multi-functional pile drivers
The application of solar pile machines within hydraulic system reduce land disruption and environmental damange, resulting an eco-friendly option for solar energy projects. As a factory-direct supplier, EVERSTAR has provided pile drivers to more than 100 countries around the world. With the help of years of export experience, and we are able to solve common installation issues during the piling process. If you are looking for pile drivers applying in the next construction program, contact EVERSTAR for details requirements about pile machines.
