Taking the HXR6 as an example, choosing the right pile driver can significantly improve piling efficiency on the construction site and ensure that piling tasks are completed efficiently.
Key Takeaways
- When selecting a pile driver, it is important to meet the project’s requirements for specifications such as piling depth and weight, while also considering the challenges and potential safety risks caused by oversized and heavy equipment during on-site transportation and movement.
- The HX-R6 pile driver, relying on its advanced integrated crawler system, precise hydraulic control system, and excellent trench-crossing, obstacle-overcoming, and low ground pressure design, can effectively overcome the complex terrain conditions of remote photovoltaic power plants.
- The operation of efficient heavy-duty piling equipment relies not only on skilled operators who have received professional training and understand center-of-gravity management and ground pressure safety control, but also requires the support of modern hydraulic and engine systems to achieve energy efficiency and emission reduction.
In modern infrastructure projects, establishing a rock-solid foundation is paramount. Whether constructing towering buildings, massive bridges, or expansive solar farms, the structural integrity of the foundation dictates the lifetime stability of the entire asset. To drive piles deep into the ground, contractors rely on specialized pile driving equipment. Choosing the correct pile driving machine requires a deep understanding of its physical dimensions, total machine weight, and how these factors influence jobsite maneuverability across diverse soil conditions.
The Crucial Role of Weight and Dimensions in Pile Driving
Construction Pile Driver-a pretty substantial piece of heavy machinery. Its size and weight are crucial to give it the heft to smash steel, concrete, or timber piles into various types of soil. But its massive footprint also makes it a bit of a problem to get around a busy jobsite-if its too cumbersome, it can be a real pain to move around, and thats a safety issue.
When you’re choosing a pile driver, the project specs are key. How deep do you need to go and how long do the piles need to be-those dictate the height of the mast and what kind of hammer you need. Trouble is, if you’re trying to get a deep foundation in place for a big industrial project, the thing needs to be pretty tall and have a serious heavy hammer, which only makes it harder to move around.
Equipment Dimension Design:
Balancing Construction Capability and Transportation Convenience

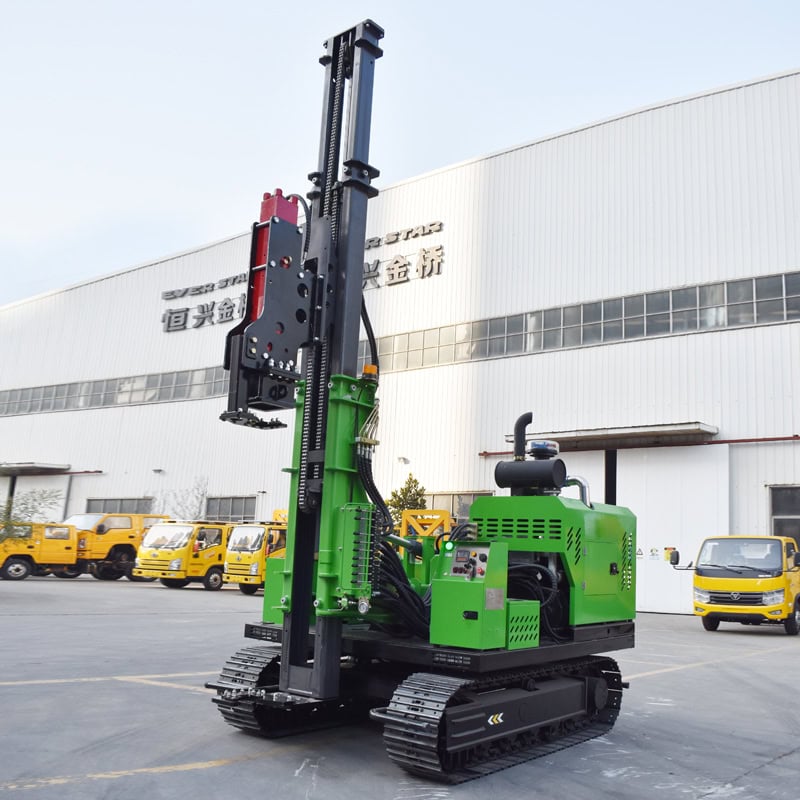

The HX-R6 series crawler-mounted solar pile driver adopts a compact body design. While ensuring excellent piling performance, it optimizes the overall equipment dimensions through reasonable structural control, enhancing transportation efficiency and on-site mobility between different construction areas.
Weight Allocation & Operational Stability
Engineering a solar piling machine requires a meticulous balance between heavy-duty operational capability and seamless logistics.
Overall Machine Transport Dimensions
| Track Type Variant | Length (mm) | Width (mm) | Transport Height (mm) | Design Advantage / Logistic Benefit |
| Steel Track Variant | 4,035 | 2,150 | 2,550 | Narrow-body profile tailored for standard transport configurations. |
| Rubber Track Variant | 4,035 | 2,150 | 2,440 | Low-clearance design eliminates oversized shipping & extra logistics costs. |
| Track Type Variant | Track Length (mm) | Track Width (mm) | Track Height (mm) | Optimized Application Scenario |
| Steel Track Setup | 2,585 | 2,000 | 620 | Heavy-duty anchoring & maximum stability in complex terrain. |
| Rubber Track Setup | 2,500 | 2,000 | 515 | Lighter site conditions, protecting delicate topsoil from damage. |
On utility-scale solar sites, structural stability directly dictates driving precision and equipment longevity. The HX-R6 series addresses this with precision-engineered operational weights: approximately 6 tons for the steel track version and 4.6 tons for the rubber track alternative. This substantial, deliberate mass distribution serves as a critical counterweight during intense hydraulic impact cycles, absorbing severe machine vibrations and dramatically increasing resistance to lateral displacement.
By maintaining a firm, immovable footprint even within highly complex geological strata, the HX-R6 provides unmatched operational reliability. Crucially, this robust structural weight is distributed perfectly across an extended ground contact area, ensuring that while the machine remains completely rock-solid during high-energy pile driving, it retains excellent ground pressure ratios for swift, self-propelled transit across soft topsoils.

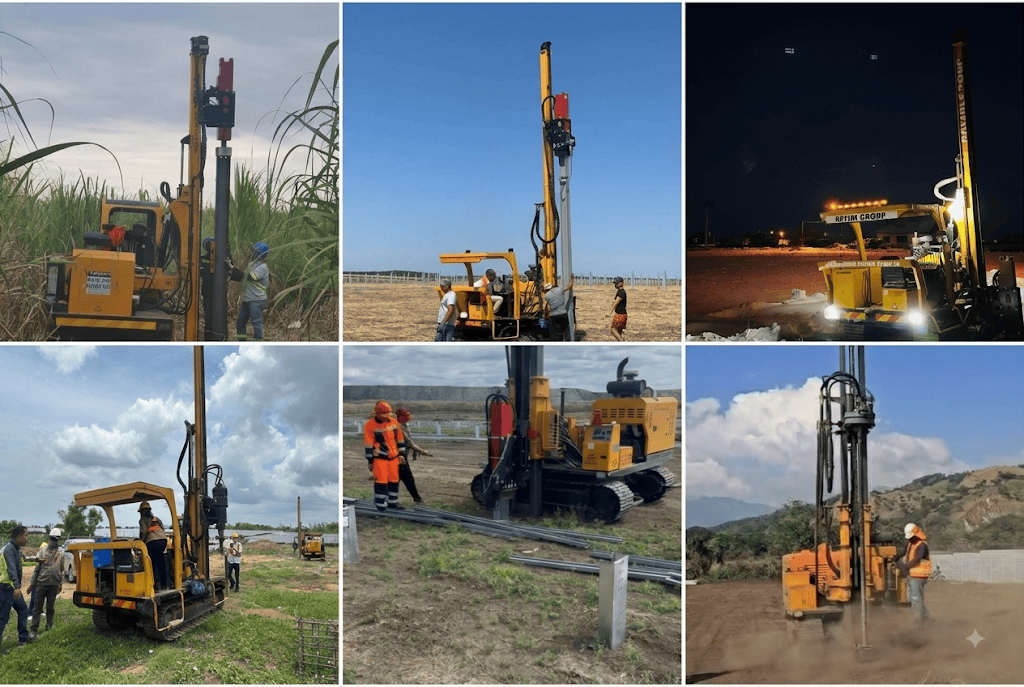

Crawler Chassis & All-Terrain Construction Mobility
Navigating the unpredictable terrain of remote solar farms is a tough ask for any vehicle, but the HX-R6 is more than up to the task thanks to its seriously advanced undercarriage engineering. The heavy-duty chassis, super-powerful travel motors and custom-made reduction gearboxes that make up its integrated crawler system all come together to give this thing the kind of all-terrain construction mobility that’s hard to match. To get the job done flawlessly, operators can rely on a sophisticated hydraulic system that pumps pressurized oil directly to the travel motors-this means they have-and need-a huge amount of control over every aspect of the HX-R6’s movement-forward, reverse, steering and braking- all the time. Unlike your run of the mill 4x4s, the HX-R6’s crawler tracks have a far bigger footprint than traditional wheels-and they put a lot less pressure on the ground too. If that wasn’t enough, a ground clearance of 345mm for steel tracks and 245mm for rubber tracks means it can take just about any rough terrain in its stride-steep embankments, scrubby wasteland, you name it-all without the slightest risk of getting stuck. In other words, this beast can bypass the toughest site obstacles in its path-no problem.
A Large Variety of Equipment for Diverse Soil Compositions
The construction industry utilizes a large variety of pile driving rigs designed to handle different geological profiles and structural mandates. Understanding the configuration options helps project managers match the machine to the specific soil composition:
- Hydraulic Pile Drivers: These advanced systems utilize a precision hydraulic drive to control the heavy hydraulic hammer. They offer high kinetic energy efficiency, lower noise levels, and precise stroke control compared to older technologies.
- Diesel Pile Drivers: Utilizing a reliable internal combustion cycle where a moving piston compresses fuel and air inside the cylinder, a diesel hammer triggers an explosive impact. While highly effective for heavy resistance, their emission levels and operational noise mean they typically see less use in urban centers.
- Vibratory Pile Drivers: Instead of striking the pile, these units use counter-rotating eccentric weights to vibrate the pile rapidly, fluidizing the surrounding soil. They are ideal for driving sheet piles in softer grounds but require an external power source to run the vibrating head.
Optimizing for the Solar Industry and Soft Ground Mobility
In recent years, the rapid growth of the solar industry has reshaped requirements for utility-scale pile driving. Unlike massive infrastructure projects that stay in one spot for weeks, solar tracker installations require the rapid deployment of thousands of smaller piles across wide geographic terrain. Here, heavy weight becomes a disadvantage; agility and rapid machine positioning are the ultimate keys to successful installation.
| Pile Type & Project Scope | Typical Machine Weight Range | Maneuverability Priority | Dominant Technology |
| Utility Solar Arrays (Light Steel Piles) | 5 – 15 Tons | High / All-Terrain Agile Tracking | Compact Hydraulic Rigs |
| Urban Residential Buildings | 30 – 60 Tons | Medium / Low Noise & Vibro Constraints | Vibratory / Shielded Hydraulic |
| Heavy Bridges & Marine Foundation | 80+ Tons | Low / Station-Fixed Stability Focus | Large Heavy Diesel / Hydraulic |
Smaller, self-propelled crawler units allow teams to quickly navigate shifting soils without sinking or tearing up the grade. These specialized solar rigs feature a tightly integrated design that eliminates the bulk associated with other types of massive industrial cranes.
Maximizing Safety, Training, and Fleet Efficiency
Operational success with any heavy pile foundations equipment leans heavily on skilled labour. Lots of contractors put themselves through a structured apprenticeship program so their operators are completely up to speed on how a machine behaves when its centre of gravity shifts, its mast extension goes up and down, and also what to look out for in terms of ground pressure before things go wrong – like a rig tipping over on a slope.
And these days it’s also standard to be on top of fuel efficiency and keeping an eye on the environmental impact. Modern hydraulic valves and management systems in the engines are all geared up to make sure that the energy generated when the piston compresses hydraulic fluid gets channelled into the drive system as smoothly as possible, with no unnecessary heat waste either.
Conclusion: Pile driving equipment
When you’re choosing the right gear, you’ve got to do a careful balance of pros and cons. You need to make sure the thing’s got the right physical size and weight to handle the pile length and the geology of the site, and at the same time the chassis has to be designed so it can move around smoothly between different driving locations. By getting your machine specs sorted for your site conditions you can be pretty sure of getting in and out of the ground safely, on time and with a tidy profit on top of it all.
FAQs——Shippment of the construction pile driver
Is the HX-R6 easy to transport between solar sites?
Compact Narrow-Body Design: With a transport width of 2150mm and length of 4035mm, it easily fits standard transport vehicles without oversized cargo permits.
No Crane Required: Equipped with a powerful hydraulic crawler undercarriage, the rig can drive itself directly up transit ramps or flatbed tailgates.
How does the machine ensure pile accuracy on rough or soft terrains?
All-Terrain Mobility: Crawler tracks offer low ground pressure and up to 345mm ground clearance, preventing the machine from getting stuck in sand or mud.
Dual Stabilization: The 4.6–6 ton chassis reduces vibration, while the guide rail micro-tunes position (300mm front/back, 500mm left/right) for precision without moving the tracks.
Contact EVERSTAR for Hydraulic Pile Drivers
Just contact EVERSTAR for the hydraulic pile drivers, experts in EVERSTAR will offer the appropriate purchase plan for consumers based on their actual needs.
