Discover how optimizing solar pile driver specs improves transport efficiency. Analyze heavy-duty machine structures & chassis built for fast site transit.

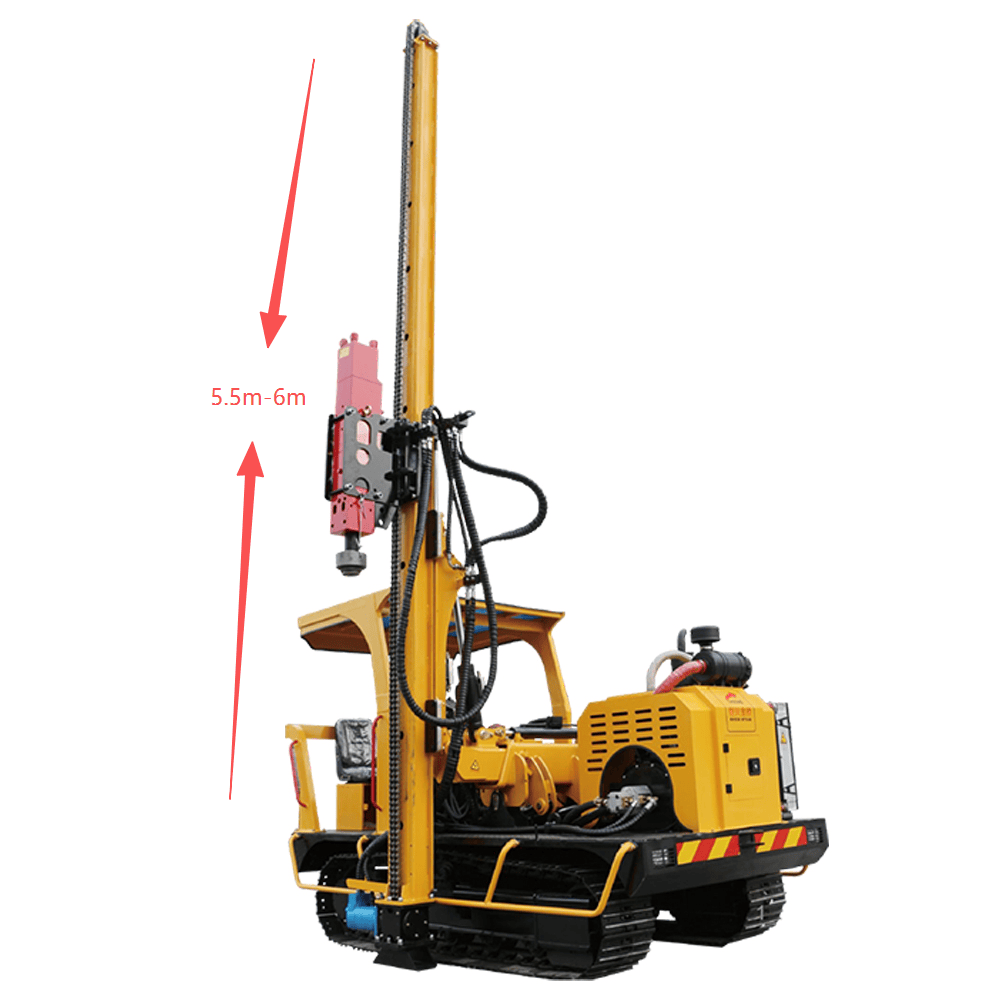

EVERSTAR solar pile driver Maximum piling height 6m
Key Takeaways
- EVERSTAR solar pile drivers enhance durability, stability, and return on investment by adopting high-strength steel, advanced welding technology, and wear-resistant, shock-absorbing designs.
- Solar pile drivers feature compact dimensions that comply with standard road transportation requirements, along with self-loading and unloading capabilities, achieving excellent mobility while significantly reducing logistics costs.
- Solar pile drivers achieve excellent site adaptability and rapid transfer between projects through their powerful crawler undercarriage, flexible maneuverability, and efficient combination with lightweight flatbed trailers.
Pile Driver Machine Details
When you’re looking at a solar pile driver you’ll want to make sure it’s got the right mix of quality and dependability to keep working well on a job site for a long time. That’s why modern machines are made with Q355 high-strength low-alloy steel. It’s perfect for handling the heavy loads these machines have to put up with. The main bits of the machine, the mast and the boom, are all built to last using techniques like full-penetration welding and heat-treating after welding to get rid of any stresses that can cause the guide to warp or the boom to get worn out.
The mast design is also pretty clever, it’s built to withstand the heavy impacts that come with the job. To make sure it lasts as long as possible they’ve added some wear-resistant strips inside to keep the guide from rubbing too much over the course of 10,000 hours of service. It’s a big improvement over traditional pile driver machines which can be prone to vibration. This design does a much better job of keeping everything running smoothly and giving you a better return on your investment.
Precision Driving on Uneven Terrain
Achieving exceptional stability and precision in a photovoltaic solar power station requires smart machine hydraulic pressure and advanced hydraulic technology. With hydraulic multi-dimensional adjustments, operators can achieve exact control over a wide range of angles without moving the entire vehicle. The guide offers micro-adjustments forward, backward, left, and right, making it convenient to place piles directly into the ground.
| Mast Angle Adjustments | |
|---|---|
| Forward: 75° | Backward: 8° |
| Left: 30° | Right: 8° |
This flexibility is ideal for traversing uneven terrain, mountains, or steep slopes. An integrated automatic straightening system seamlessly corrects vertical alignment to achieve a multi-pile construction precision of ±1~2 cm. Whether deploying hydraulic hammers with appropriate impact power or managing different driving depth and speed profiles, multiple model options can be chosen in order to meet the diverse demands of any renewable energy project.
Hydraulic hammers
Compared with the traditional methods, the hydraulic hammers equipped on the solar pile driver will improve the piling efficiency on the construction site. Depending on the solid mast supported, solar machine finishes the installation tasks on the precondition of the piles number demands. The adjusted attachments can be chosed for different piling condition to finish the solar project.
Unmatched Mobility and Fast Site Transit
For modern solar piling deployments, a compact and efficient transport design is a flat out must to save as much precious time as possible. You don’t need an operator to spend ages breaking down the pile driver. Pushing the pile driving unit in and out of service is made super quick and easy using a clever hydraulic pressure folding cylinder that lets it switch between work and transit modes with a snap.
Optimized Dimensions: The likes of the R5 (5 tons) and R6 (6 tons) models aren’t much bigger than a car to ship them, coming in at a compact 2.1 – 2.25 m wide and 2.45 – 2.55 m tall.
Standard Logistics: And the best bit is, they fit perfectly on standard low-bed trailers, no special permits required – they can even take a drive down the highway alongside the guardrail guys.
Self-Loading Capacity : Thanks to a seriously tough set of hydraulic components, this thing just cruises up a 15° ramp, no problem.
This means you can kiss goodbye to expensive cranes and a load of other costs, all of which just adds up to a lower end budget and a much smoother more efficient operation.
Solar Pile Driver Shipping Dimensions & Container Compatibility Guide:
| Container Type | Internal Dimensions (L × W × H) | Maximum Payload Capacity | Suitability for Pile Driver Transportation |
|---|---|---|---|
| 20GP Standard Container | 5,898 × 2,352 × 2,393 mm | Approx. 28 tons | ❌ Not suitable – Insufficient internal height |
| 40GP Standard Container | 12,032 × 2,352 × 2,393 mm | Approx. 26 tons | ❌ Not suitable – Insufficient internal height |
| 40HC High Cube Container | 12,032 × 2,352 × 2,698 mm | Approx. 26 tons | ✓ Suitable for R5/R6 models – Provides sufficient height clearance |
| 45HC High Cube Container | 13,556 × 2,352 × 2,698 mm | Approx. 27 tons | ✓ Recommended – Offers additional loading space for accessories and tools |
| 20OT Open Top Container | Approx. 5,898 × 2,352 × 2,330 mm | Approx. 28 tons | ❌ Not suitable – Insufficient length for R5 model |
| 40OT Open Top Container | 12,032 × 2,352 × 2,330 mm | Approx. 26 tons | ⚠️ Limited suitability – Height modification may be required |
| 40FR Flat Rack Container | 12,032 × 2,438 × 2,591 mm | Approx. 39 tons | ✓ Recommended – Suitable for heavy equipment transportation |
| 45FR Flat Rack Container | 13,556 × 2,438 × 2,591 mm | Approx. 40 tons | ✓ Recommended – Provides maximum loading flexibility |
Pile driving – Maximizing Field Productivity and Logistics.
The ultimate test of a ramming machine is how quickly it can be moved from one job to another, especially in tight spaces like between solar arrays or across distant projects. With a sturdy wide crawler chassis, these machines distribute their weight evenly and can handle deserts, mud, and sand bars with ease. The equipment can drive at up to 3.5 km/h and with full 360° counter-rotation, can easily navigate tight mountain turns and site obstacles.
For short-distance, high-frequency site transits, pairing 1 or 2 ramming machine units with a light flatbed trailer can create a super-highly efficient workflow. This setup allows teams to fit in a lot of work and execute a fast multi-site task schedule within a single day. Backed by an industry-leading warranty package, this solar pile driver setup really has the power, speed and reliability that the fast-paced green energy sector demands. A good transit configuration is basically your ultimate guide to outstanding job-site performance.
FAQs – Transport Dimensions
What are the transport dimensions of the solar pile driver, and do you need special permits?
Our Solar pile driver models, like the R5 and R6, have been designed with a really compact shipping profile to meet standard highway regulations. When you fold the mast up the transport width is usually between 2.1 to 2.25 meters, and the height is around 2.45 to 2.55 meters.
When pile drivers are shipped to the U.S. and Europe they can be placed on flatbed trailers for road transport (hauling). Their dimensions are fully compliant with the permit-free size limits for standard roads in the U.S. and Europe, so they can be transported directly by regular trucks without needing any special permits.
How does the ramming machine handle onsite transit and loading without a crane?
This ramming machine eliminates the need for expensive cranes or hoisting equipment during transit. It’s powered by heavy-duty hydraulics and has a high-traction crawler chassis so it can climb a 15° slope and drive itself directly onto or off a flatbed trailer. For onsite mobility the pile driving unit has 360° counter-rotation and wide tracks allowing it to navigate through tight solar panel arrays, narrow mountain paths and uneven terrain with ease.
Contact EVERSTAR for Solar Pile Driver in your Solar Projects
The convenience of transportation enables EVERSTAR pile drivers to achieve easier and more efficient relocation between job sites. Just contact EVERSTAR for more information about the solar machine, and experts will provide the most practical purchase plan.
