Key Takeaways
- The right piling rig accessories and attachments help heavy rotary rigs handle more piling conditions, deliver better hole quality, and reduce downtime.
- Core drilling tools such as kelly bars, casings, buckets, bits, augers, and cluster hammers expand the capabilities of foundation equipment.
- Matching tooling to soil, fractured ground, or rock improves control, speeds up changes, and gives each customer more flexibility.
- Standardized rig accessories and regular wear checks protect uptime, support after-sale service, and improve long-term product value.
- EVERSTAR supplies heavy-duty accessories equipped for large rotary piling applications.

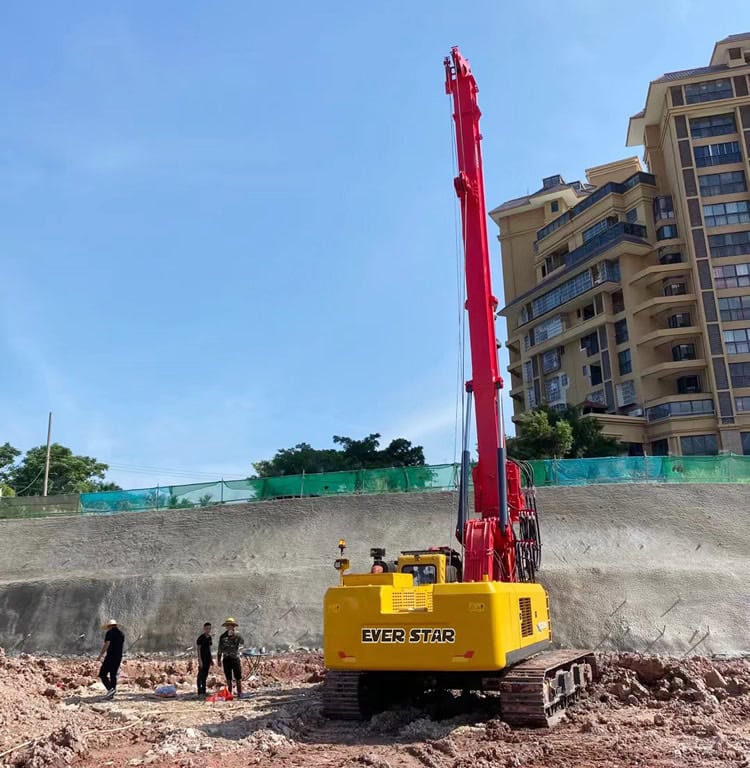

Heavy rotary foundation rigs become more versatile with the right attachments and related accessories. Components with the right tooling, such as casings, buckets, bits, and augers help these machines handle different piling conditions, from soft overburden to rock.
For customers, these piling rig accessories and piling rig innovations improve bore stability, speed up tool changes, and better utilize existing equipment.
Because rotary piling depends on proper tooling, machine compatibility, and safe operation, the International Association of Drilling Contractors (IADC) can also serve as a useful industry reference.
Discover in this article focuses on heavy rotary piling systems compatible with EVERSTAR parts, including teeth, casings, bits, and other drilling tools for demanding foundation work.
Core Drive Attachments: Kelly Bars and Casing Systems
In suitable applications, EVERSTAR-compatible rotary equipment can support drilling depths of up to 130m without the need for larger specialist machines.
Casings are also essential piling rig accessories because they help prevent collapse in loose or unstable formations. In mixed ground, these accessories improve bore stability and make piling more predictable for the customer.
Kelly Bar Role in Rotary Torque and Depth
In rotary piling, interlocking systems use locked sections to achieve higher torque transfer, while friction systems rely more on gravity during extension and on keys for power transmission. Rotary heads play a crucial role in transmitting rotary power from the rig to the Kelly bar, ensuring efficient drilling performance.
Effective drilling depths typically range from 10–122 m, with some low-headroom setups using 5 to 8 sections. EVERSTAR designs may also include reinforced cross-flange keys and double collars to reduce channeling and extend service life.
Additionally, power packs serve as vital accessories, supplying the hydraulic power needed to operate various piling rig accessories efficiently. Equipped with reliable power packs, rigs can maintain consistent performance and handle demanding piling tasks with improved control and energy management.
Ground conditions determine which piling rig accessories and drilling tools to use. Rotary buckets are common in softer soils, while bits and augers are better for denser layers or rock. This flexibility makes heavy rotary rigs more effective in foundation work.
A complete set of piling rig accessories helps one machine handle different formations more efficiently. That means better use of equipment, higher uptime, and smoother transitions between drilling stages for the customer.
Tricone and Core Drilling Tools for Rock Layers
When piling reaches stronger rock, tricone bits are often used because their three-cone design can crush medium-hard formations, typically in the 15–260 MPa range depending on the bit. Core bits are used when cleaner sampling or better formation information is needed during drilling.
In some heavy-ground applications, cluster hammers can also support related breaking tasks as part of a broader range of rig accessories. They operate to complement rock-focused drilling tools rather than replace them.
EVERSTAR also offers limited customization and consultant support for fitment details and specialized sales requests. This can help the client choose the right product for specific ground conditions.
Quick-Swap and Maintenance for Multi-Use Rigs
Modern piling rig accessories deliver the most value when they can be changed quickly. Standardized pins, couplers, and adapters often allow swaps in under 30 minutes, helping rotary rigs move between buckets, casings, augers, and other drilling tools with less delay.
On well-managed EVERSTAR setups, this can support 80–90% uptime in mid-scale piling.
Maintenance is just as important. Worn tooling reduces hole quality, increases stress on equipment, and lowers long-term product value after sale.
Standardized Interfaces for Fast Tool Changes
Quick couplers, pins, and adapters simplify changes between buckets, casings, hammers, and other rig accessories. This helps crews move from overburden drilling to rock work without full disassembly.
It also supports fleet planning by making it easier to use accessories across multiple compatible rigs and selected excavator setups.
Task-Specific Combinations: Attachments for Complex Holes
Complex piling often requires multiple drilling tools in sequence. A common example is 10 m of overburden followed by 20 m of rock, where the operator may combine a bucket, casing, bit, and augers for each stage.
Soil-to-Rock Transitions: Bucket + Bit + Casing
Buckets with flat teeth are often used first in soft overburden. When harder layers appear, crews switch to tricone or PDC-style drilling tools, while casing advances through fractured zones to maintain stability.
Mud flush can also support cutting and spoil removal, with advance rates often ranging from 5–10 m/hr. In difficult formations, cluster hammers may also support related equipment planning.
Oversize Holes and CFA: Specialized Buckets and Augers
Large-diameter buckets and CFA augers are used for secant walls, wet concrete piles, and other high-capacity piling applications. CFA systems commonly cover diameters from 0.6–2 meters, depending on the base equipment.
EVERSTAR can review compatibility for heavy rotary rigs, selected excavator support workflows, and related accessories, but these systems are not intended for small pile drivers.
FAQs – Piling Rig Accessories
What attachments speed up tool changes on piling rigs?
Quick couplers, pins, adapters, and standardized drive connections are the main rig accessories that speed up tool changes. They help crews switch buckets, casings, augers, and other drilling tools faster, with less teardown.
How do bucket teeth differ for soil vs rock?
Soil teeth usually have a flatter profile for smoother cutting in loose or moderately compacted ground. Rock teeth, especially bullet styles, are more pointed and wear-resistant, helping drilling tools and augers penetrate harder layers more efficiently.
When are double-wall casings necessary?
Double-wall casings are used when piling passes through unstable, fractured, or collapse-prone formations. Their added rigidity helps maintain bore stability and provides a more secure working environment for other accessories and drilling tools.
Building Adaptable Rotary Piling Rigs With Smart Attachments
Combining drive systems, cutting/drilling tools, casings, augers, and related accessories helps heavy rotary rigs handle a wider range of conditions with better reliability and hole quality.
Quick-swap piling rig accessories make transitions faster, while maintenance checks extend service life and improve after-sale value.
The goal is coordinated tooling that improves performance and efficiency without adding unnecessary complexity.
Source Piling Rig Accessories From Everstar Today
If your team is planning foundation piling work, contact EVERSTAR with your rig model and project requirements to receive a recommended bundle of piling rig accessories, including products as teeth, bits, cluster hammers, and augers.
Our experts can provide fitment data, recommend a full range of product combination, and help each project to build a more efficient heavy-duty package for rotary equipment.
