Ideal Soil Conditions for Impact Pile Driver Operations
When starting a solar construction project, choosing the right gear for your pile foundations is crucial to the long term stability of the whole structure. While a bog standard excavator can knock out some pretty basic tasks, more complex builds need a bit more heavy metal.
Nowadays, with tech advancing as fast as it is, an impact pile driver paired up with an impact drill has become the go-to for getting piles safely and securely stuck into the ground. This combo lets you drive deep into the earth whether you’re building some massive solar farms, a coastal jetty, or even local infrastructure like a bridge. For the people and teams behind the scenes, at the manufacturers and developers level, understanding how an impact driver interacts with the soil is the first step in working out how to get the best bang for your buck on the job site.
Hydraulic hammers
Different ground conditions require other types of driving mechanisms to reach the targeted depth. Hydraulic hammers and hydraulic impact hammers are commonly used to deliver a powerful heavy weight blow to force steel into dense layers.
For example, when dealing with stubborn strata, the operation of vibratory hammers helps fluidize the earth, while a traditional diesel hammer relies on a physical fall and subsequent internal explosion to generate downward force. Unlike a simple vibratory setup, an impact pile driver uses fuel efficiently to maximize force while managing the structural limit of the material being driven. This ensures every sheet piles or solar post setup is perfectly aligned without damaging the foundation.
Down-the-hole Impact Drilling
Multi-function Integration: The HXR6 series crawler-type solar pile driver is a fully hydraulic-driven machine that integrates multiple construction techniques, including down-the-hole (DTH) impact drilling.
Key Advantages: When using the impact drilling method, the machine delivers fast drilling speed and excellent hole formation quality, making it highly suitable for large-scale photovoltaic power plant construction in complex geological conditions.
Technical Specifications
With the rapid development of renewable energy, solar installations are expanding into increasingly challenging terrains, from rocky hillsides to coastal docks and waterfront areas. To meet these demands, our engineering team has developed a state-of-the-art technology that integrates an impact pile driver with high-performance drilling rigs. This specialized system is designed to hold maximum stability even in the toughest geological formations. Once the powerful hydraulic force is released, the equipment effortlessly penetrates hard strata without compromising structural integrity. To learn more about how this system can optimize your next project, feel free to contact our specialists for a detailed consultation.
Detailed information about the drilling performance.
| Impact Frequency | 800Bmp |
| Impact energy | 1200-1800J |
| Drill Rod Diameter Specifications | Φ75mm Φ85mm Φ100mm |
| Maximum Drilling Depth | 6m |
| Drilling Diameter Range | Ø65-4300mm |
Working Principle of Down-the-Hole (DTH) Impact Drilling
When the pile driver shifts into Down-the-Hole (DTH) impact drilling mode, the deal is as follows:
1.Putting it all Together: The drill bit, DTH hammer, drill rod and main shaft of the power head plug together nice and neat.
2.Running Compressed Air: To get this thing going you need to hook up the power head to a compressed air compressor.
3.How the Feed System Works: Once air pressure is on, the feed cylinder gets controlled by compressed air and that makes the power head drop down to get the drilling done.
4.Important Assembly and Operating Stuff: When you’re using the drilling system for impact drilling, you need to have the right parts lined up like the DTH hammer, drill rod, and air compressor. Then you have to get it all working under normal conditions so you can make sure everything is lined up right and not shaking around like crazy while you’re using it.
Starting the Drilling Process:
Find the spot you want to drill and get it lined up with your pile positioning method.
Lower the drill bit down till it hits the ground.
Flip the air valve to get the compressed air going and get the impact happening while at the same time moving the hydraulic control stick down to turn the drill bit and start drilling.
Cleaning the Air Circuit and Keeping the System Lubricated
The DTH impact drilling system has some pretty strict rules when it comes to cleaning out the air circuit and keeping things lubricated before and after operation.
Cleaning the Air Circuit: Before you even start, make sure to open up the main shut-off valve and blow out any junk in the air line for a bit to get it clear. And while you got that open, just give the drill rod a little tap with a hammer to get the dust and dirt out of there.
Getting the Drill Rod Ready: Before you put everything together, throw a little bit of grease on the threaded joint on the DTH hammer to make sure it seals up good and the operation goes smoothly.
Adjusting and Checking the Oil Mist Lubricator:
Once you got the drill rod connected check whether any oil is making its way down the end of the drill rod, and if not, you might need to fiddle with the lubricator until you get a good oil mist going.
When you first start the thing up, run it on the lowest air flow and after a bit, shut it down and see if there’s some residual oil in the drill bit grooves. If not, you might need to make some adjustments.
And before every single use, make sure to check the oil level in the lubricator and top it off if it’s running low.
Site Challenges: Materials, Noise and Safety
Every construction site presents its own set of unique challenges, from the underlying materials, like concrete, hard steel, or even wood. Whatever the cost and the prices, operators need to be aware of the environmental regulations that how to do to deal with the underlying materials.
Minimising noise and vibration during pile driving is essential if you want to stop nearby structures from getting damaged and if you want to stay within the rules. Now a big heavy weight falling can cause a real problem, but modern vibratory and hydraulic pile drivers are designed to deal with that and to keep it in check.
And at the end of the day, on any site that is operating properly, the safety of workers is always going to be the top priority. Proper safety protocols have to be in place at all times during the driving process to ensure that the rig is secure and it wont collapse or the structure wont shift during deep excavations.
FAQs——Operating Precautions
How can operator optimizes the down-the-hole (DTH) impact drilling efficiency in a multi-functional pile driving program?
- Perfect Alignment: When assembling the drill bit, impactor, and drill pipe to the power head spindle, always perform a test run to ensure all components are perfectly coaxial and do not wobble.
- Active Anti-Clogging: While drilling, periodically lift the impactor slightly up and down. This prevents gravel, dust, or concrete debris from clogging the impactor and the drill bit.
- Optimal Airflow & Lubrication: Before connection, flush the air lines with compressed air to clear debris. Always check the line lubricator oil level before operation to ensure a steady supply of oil at the drill pipe end, which reduces friction and wear under high-frequency (800 Bmp) impacts.
What is the correct procedure for lubricating and starting a DTH impact drill for the first time?
- Pre-Assembly Cleaning & Greasing: Use compressed air to blow out the main air lines for a few minutes and gently tap the drill pipe to remove inner dust. Apply specialized thread grease to the impactor joint before connection.
- Line Lubricator Adjustment: Connect the drill pipe and check the tail end for oil traces. Adjust the line lubricator until visible oil is present.
- Low-Air Startup Test: Always start the impactor with minimum air volume for the first few minutes. Stop the air and check if there is residual lubricating oil inside the drill bit slots. This confirms that the oil mist volume is correctly balanced for high-energy (1200-1800J) drilling.
Contact EVERSTAR for High Frequency Impact Pile Driver

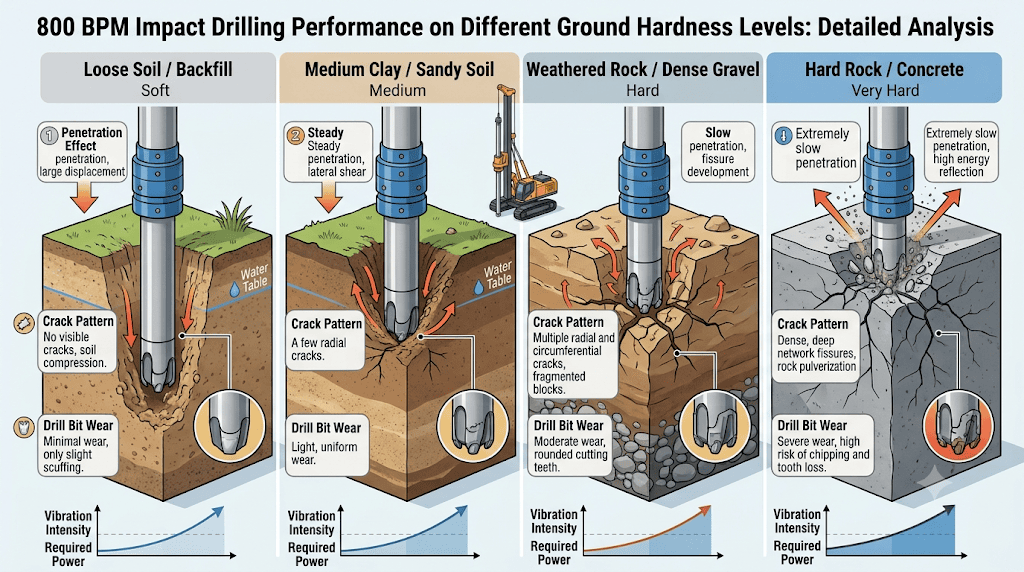

Through the illustration about the impact drilling performance, consumers will acquire the basic knowledge about the solar pile drivers. Just contact EVERSTAR to get more information about the machine. Professional team in EVERSTAR will offer the appropriate purchase plan.
