Key Takeaways
- A 12m electric scissor lift gives you around 10m of platform height and 12m of working height.
- EVERSTAR’s compact electric scissor lift models carry 200-350 kg of platform capacity, built for indoor use.
- Confirm width, weight, platform dimensions, platform height, and floor capacity before delivery.
- Scissor lifts working on mezzanines or elevated areas need additional floor-load verification.
Picking a 12m electric scissor lift takes more than checking a height spec. The machine still has to clear the site, stay under the floor-load limit, and carry enough platform capacity for the crew and their materials.
Working height and platform height: what 12m actually means on the job
Working height vs. platform height: the 2m reach difference
The maximum working height on a 12m electric scissor lift tops out at 12m, while platform height sits closer to 10m. That 2m gap covers the operator’s extended reach once they’re standing on deck.
Matching the machine to the task comes down to reach: a work point 12m up is within reach for someone standing on a 10m platform, so a 12m electric scissor lift covers it. Only a job that puts the platform at 12m calls for a taller unit, one with 14m of working height.
EVERSTAR’s electric scissor lift height guide compares working height and platform height across the full model range.
12m class application range: what this working height actually covers
A 12m electric scissor lift fits indoor maintenance and installation work at 8-12m platform height: overhead lighting, ceiling and duct work, high-bay racking inspection, and glazing. EVERSTAR’s electric scissor lift range runs 6-18m of working height and 200-680 kg of load, so it spans every indoor height class you’re likely to need.
These jobs often sit in confined spaces, so height is only part of the equation. Width and turning clearance decide whether the electric scissor can actually reach the work area, and a compact design helps it move through tight spaces and small spaces inside warehouses and commercial buildings.
For smaller projects, a 6-8m electric scissor lift may give you enough platform height without the extra size and weight of a 12m machine.
Outdoor projects raise a different set of requirements. Uneven surfaces and rough terrain need equipment built for outdoor use, not an indoor electric scissor lift. EVERSTAR’s scissor lift range covers access platforms for a range of construction and maintenance applications.

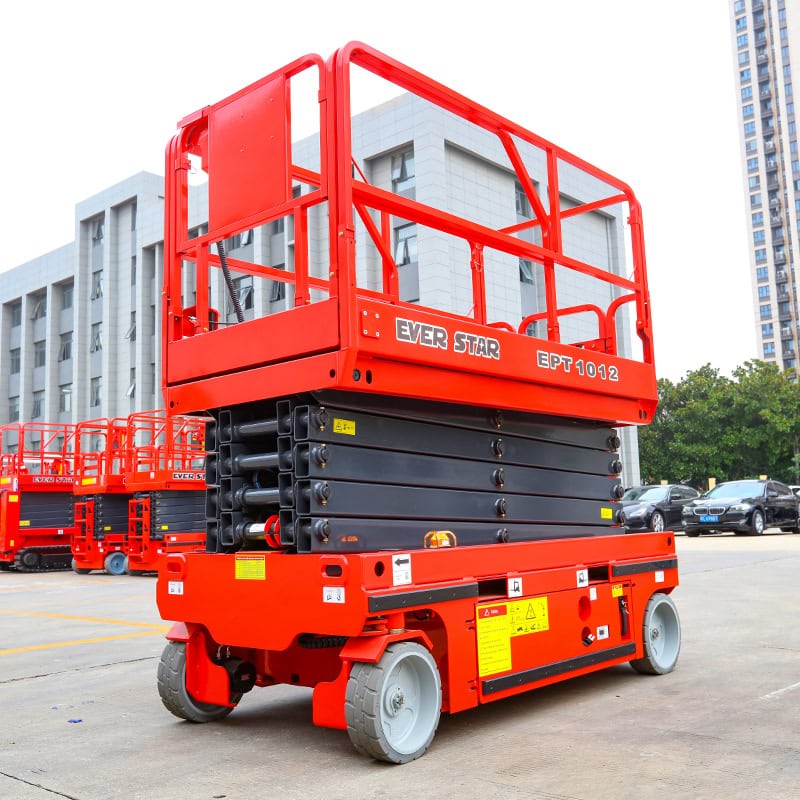

Machine dimensions and operating weight: confirming site fit
Machine width, platform dimensions, and access route clearance
| S.V.L | 320Kg | S.W.LOn Extension | 113kg |
| Max.Working Height | 12m | Platform Size | 2270X1120mm |
| Overall Weight | 2550Kg | Up/Down Speed | 100/80sec |
Width decides whether a scissor lift can reach the job at all. EVERSTAR’s compact wheeled electric scissor models stay close to 1.2m wide across most of the 6-12m range, so a taller platform height doesn’t mean a much wider machine.
A lift can clear the loading dock and still jam two turns down the corridor — adjust according to the actual situation. Door width, aisle width, and site width along the whole transportation route need checking, not just the entrance.
Platform width and length set how much gear fits up there. Two techs with a duct section and a tool bag can eat up more usable space than the rated platform capacity suggests, since a wider deck doesn’t add platform capacity or lift capacity unless the load rating changes.
EVERSTAR’s scissor lift size comparison lays out height, width, and load data by model.
Operating weight and floor load bearing capacity at deployment zones
Add platform height and you add weight: reaching further pulls in more mast and hydraulic hardware. A 12m electric scissor lift carries a higher operating weight than many compact 6-8m models, even when their platform capacity is similar.
Floor rating matters at every deployment point. Mezzanines, suspended floors, and older structures are the trouble spots, where an overloaded point can crack tile.
A warehouse project and a construction site don’t behave the same under a loaded lift. Confined spaces above service areas need a second look too. Weight figures for each machine class appear in EVERSTAR’s scissor lift weight and dimensions guide.
Load capacity and OSHA compliance for 12m class indoor deployment
Platform rated load: two-operator deployment and tool weight calculation
EVERSTAR compact wheeled electric scissor lift models cap at 200-350 kg platform capacity. That load covers one or two operators plus PPE, tools, and light materials.
Everything placed on the platform counts toward that capacity. When operators and materials approach the rated weight, unused platform space adds nothing.
Check the platform capacity for the exact electric scissor lift on site. Heavy materials cut into the weight available for personnel.
EVERSTAR’s electric scissor lift specifications break down platform capacity by model.
Battery life and OSHA pre-use checks for 12m class use
An electric scissor draws down its battery just moving around the site and running the platform up and down. Send it to full platform height over and over in one shift and the hydraulic system pulls even more power, so plan the charge around how many lifts that day’s project actually needs instead of guessing at a flat number.
Before each shift, complete an OSHA (Occupational Safety and Health Administration) pre-use inspection covering the platform deck and gate, controls, emergency stop, battery, and other safety components.
That pre-use inspection is only one piece of what’s included: every EVERSTAR machine ships equipped for electric operation, with operator training and after-sales support for safe loading, battery use, and routine maintenance.
FAQs
What is the platform height of a 12m electric scissor lift and what tasks does it suit?
A 12m electric scissor lift puts you at roughly 10m platform height with 12m of working height overhead, enough for lighting, ceiling and duct work, high-bay inspection, or warehousing jobs. Before picking one for a specific project, weigh its width against your access routes and confirm the platform capacity covers your crew and materials.
How much weight can the platform of a 12m electric scissor lift carry?
EVERSTAR compact wheeled electric scissor lift models offer 200-350 kg platform capacity, depending on the machine. That capacity covers operators, PPE, and light materials as long as their combined weight stays within the rated limit. Check the specification of the exact electric scissor model before use.
Platform height, machine width, floor load, and battery duration all need confirming before deployment
A 12m electric scissor lift combines roughly 10m platform height with 12m working height. That’s only the entry point. Width has to clear the corridor, the floor has to take the operating weight, and battery life and platform capacity have to match the day’s workload.
These machines handle indoor maintenance and installation well, but they only move straight up and down, so a crew still has to walk the site access and work positioning before committing to one. A warehouse with firm, level floors is where this class earns its keep; a site with mud, gravel, or slopes calls for a different machine entirely.
Non-marking tires on indoor models are specifically designed for polished floors, ensuring safety without slowing daily traffic.
